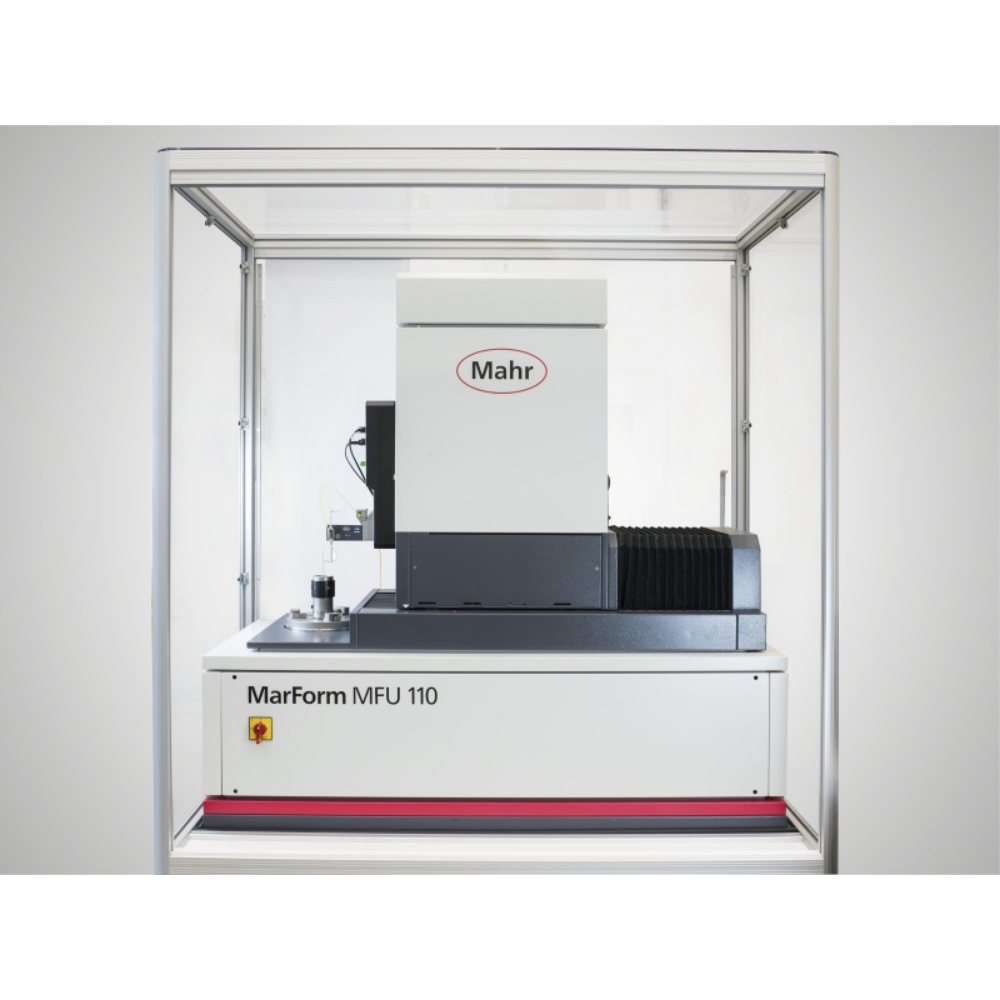

MAHR MarForm MFU 110 Reference form measuring station

Reference form measuring machine for fine measuring room and production with tactile and optical sensors.

Make the most of the advantages the latest optical measurement technology has to offer

Contactless form measurement of sensitive parts

Particularly high measuring accuracy

Reduction of your production costs

Direct use in production

Maximum level of automation

The high-precision MarForm MFU 110 measuring machine is based on the tried and tested MFU 100 with the addition of a high-speed C-axis. The highly flexible MarVision IPS 15 optical measuring system is optionally available. It is a tactile and optical probe for high-precision measuring tasks in measuring rooms or in production.

Ask a question

Description Specification

MarForm MFU 110

This measuring machine boasts all the advantages of conventional tactile and modern optical measuring technology.

Here is an overview of some of the advantages of the optical measuring technology:

No effects from measuring force, measuring objects are not bent or deformed

Contactless measuring, no scratching or damage to sensitive surfaces

Direct measurement, no effects of probe head geometry, therefore more accurate measurement of contours, e.g. edges, convex forms

Very small probe arm diameter, measurement of very small objects and forms, e.g. small holes

High rotational speed of C-axis, short measuring time, large volumes of data, areal measurement

Greater vertical and lateral resolution, higher precision e.g. for diameters and distances

Maximum measuring certainty process accuracy

Future-proof MarWin software package

Just like the MFU 100, there is an active air-conditioned enclosure available for the MFU 110 for use in the production area

Shorter distances and faster intervention for controlling the production process reduce your costs and optimize the quality of your products.

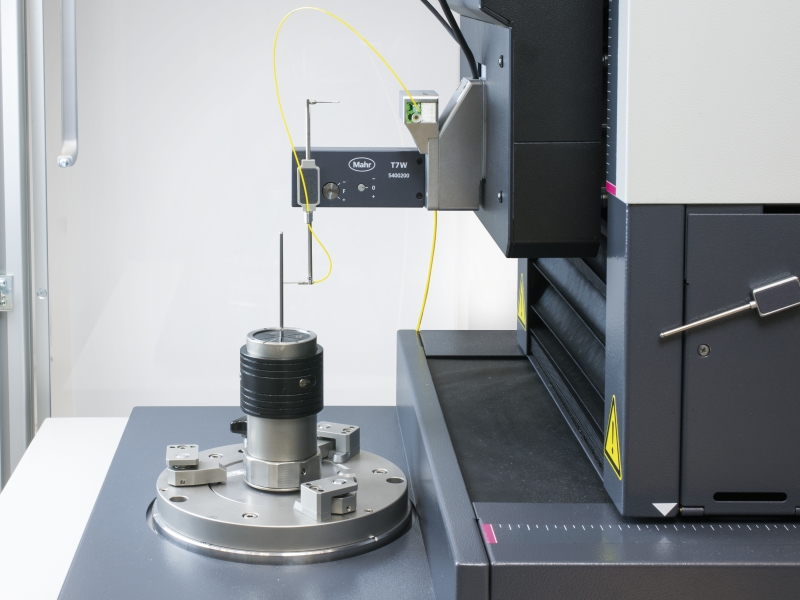

The motorized centering and leveling table, the key component of a form tester, together with the use of the T7W motorized probe, provide maximum automation.The MarForm MFU 110 is future-proof and expandable thanks to the rigorous separation of control and evaluation. New language versions are easy to incorporate, as are special evaluations and new standards.

Roundness deviation (µm+µm/mm measuring height) *	0,01 + 0,0002
Roundness deviation (µm+µm/mm measuring height) **	0,02 + 0,0004
Axial runout deviation (µm+µm/mm measuring radius) *	0,02 + 0,0002
Axial runout deviation (µm+µm/mm measuring radius) **	0,04 + 0,0004
Centering and tilting table	automatic
Table diameter (mm)	180
Table load capacity, centered (N)	200
Speed (rpm) 50 Hz / 60 Hz	0.1 to 200
Straightness deviation / 100 mm measuring path (µm)**, Z axis	0.1
Straightness deviation / total measuring path (µm)**, Z axis	0.3
Parallelism deviation Z-/C axis in tracing direction, measuring path (µm)	0.6
Measuring speed (mm/s), Z axis	0.1 to 50
Positioning speed (mm/s), Z axis	0.1 to 50
Straightness deviation / total measuring path (µm)**, X axis	0.3
Perpendicularity X/C axis, measuring path (µm)	0.3
Positioning speed (mm/s), X axis	0.1 to 50
Measuring speed (mm/s), X axis	0.01 to 50
