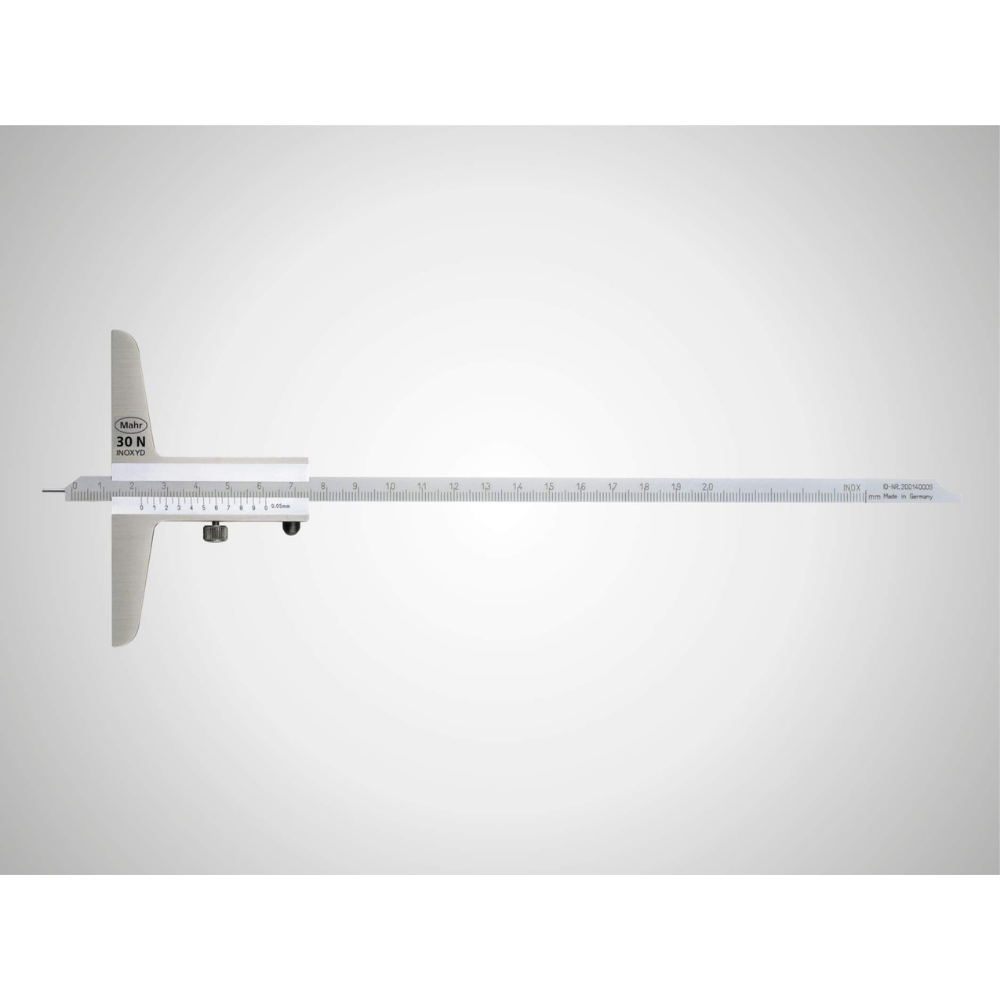

MAHR MarCal 30 N Depth Gages

MAHR MarCal 30 N Depth Gages
MAHR MarCal 30 N Depth Gages

MAHR MarCal 30 N Depth Gages

  • Vernier and scale have a satin chrome finish for glare free reading

  • Locking screw below

  • Hardened measuring pin

  • Measuring surfaces made of steel

  • Interchangeable beams

  • case

Ask a question
Description

MarCal 30 N Depth Gages



Technical data

Order no.Measuring range mmReadings mmError limit (mm)Standard
4127200

0 - 80

0.05 mm

0.05 mm

DIN 862
4127300

0 - 150

0.05 mm

0.05 mm

DIN 862
4127301

0 - 200

0.05 mm

0.05 mm

DIN 862
4127201

0 - 300

0.05 mm

0.05 mm

DIN 862
4127202

0 - 500

0.05 mm

0.07 mm

DIN 862
