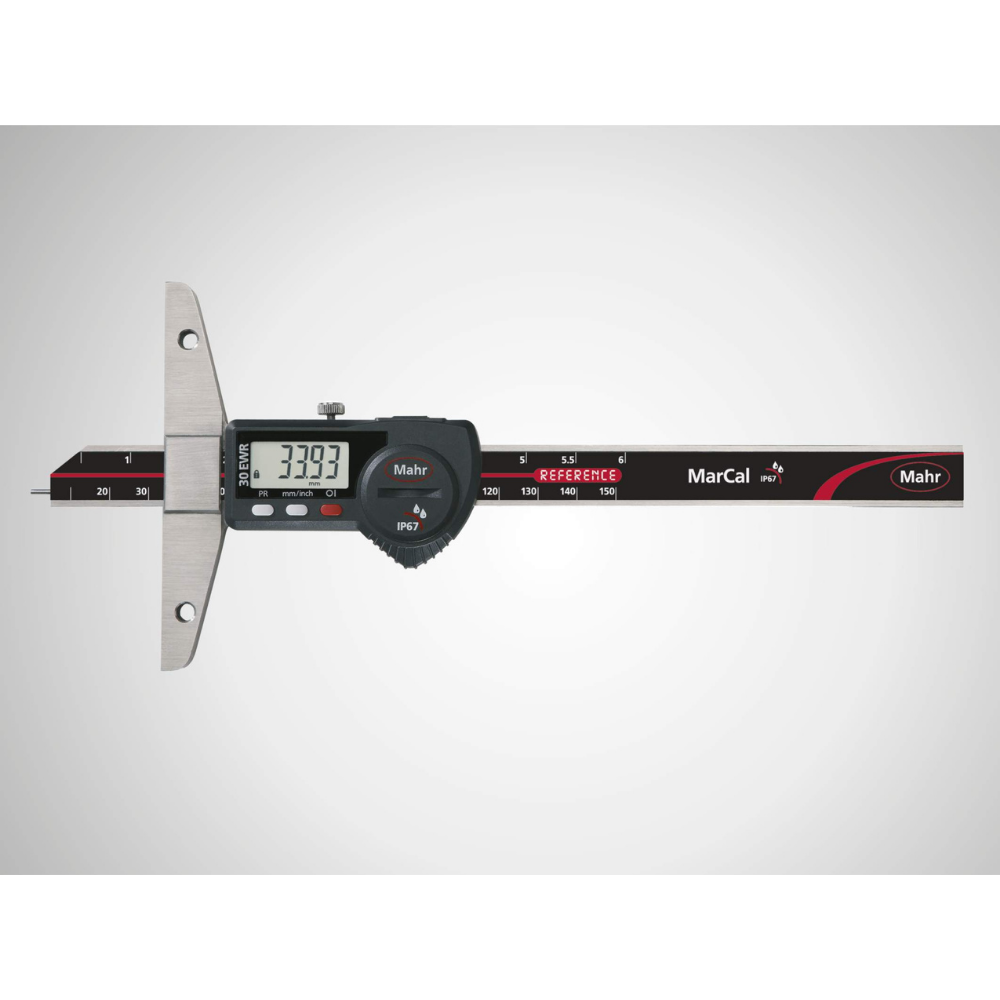

MAHR MarCal 30 EWR Digital depth gage, IP 67, Data interface

MAHR MarCal 30 EWR Digital depth gage, IP 67, Data interface
MAHR MarCal 30 EWR Digital depth gage, IP 67, Data interface

MAHR MarCal 30 EWR Digital depth gage, IP 67, Data interface

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring surfaces made of steel

  • Slide and beam made of hardened stainless steel

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Excellent resistance against dust, coolants and lubricants

  • Dirt wipers are integrated in the slide

  • Digimatic

  • Opto RS-232C

  • USB

  • IP 67

  • battery

  • instruction manual

  • case

  • Battery life approx. 3 years

Height of digits

  • 8.5 mm

Ask a question
Description

MarCal 30 EWR Digital depth gage



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandard
4126700

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

Factory standard
4126699

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

Factory standard
4126701

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard
4126702

0 - 500

0 - 20"

0.01 / .0005"

0.05 mm

.002"

Factory standard



Functions

  • AUTO-ON / OFF

  • DATA (data transmission via connection cable)

  • ON/OFF

  • PRESET (for entering a numerical value)

  • RESET (set display to zero)

  • mm/inch

  • LOCK function (key lock)
