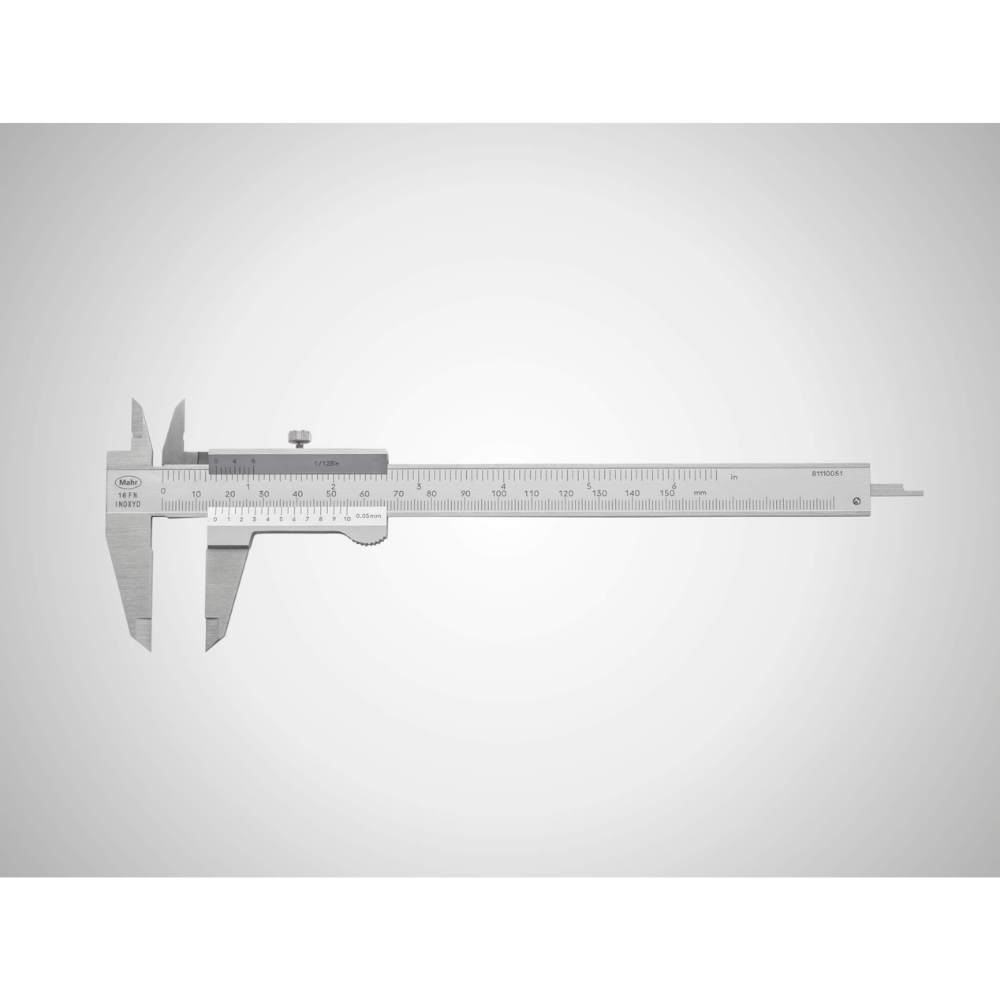

MAHR MarCal 16 FN Caliper with analog display, 0.05 mm / 1/128″, Locking screw above

MAHR MarCal 16 FN Caliper with analog display, 0.05 mm / 1/128″, Locking screw above
MAHR MarCal 16 FN Caliper with analog display, 0.05 mm / 1/128″, Locking screw above

MAHR MarCal 16 FN Caliper with analog display, 0.05 mm / 1/128″, Locking screw above

  • Vernier and scale have a satin chrome finish for glare free reading

  • Locking screw above

  • Measuring surfaces made of steel

  • Measuring blade for inside measurements

  • Slide and beam made of hardened stainless steel

  • Step measuring function

  • Raised guideway for the protection of the scale

  • thread table

  • case

Ask a question
Description

MarCal 16 FN Caliper with analog display, 0.05 mm / 1/128"



Technical data

Order no.Measuring range mmMeasuring range inchReadings mmVernier value inchError limit (mm)Error limit inchesStandardDepth Rod
4100400

0 - 150

0 - 6"

0.05 mm

1/128"

0.05 mm

.002"

DIN 862

rectangular
4100401

0 - 200

0 - 8"

0.05 mm

1/128"

0.05 mm

.002"

DIN 862

rectangular
4100402

0 - 300

0 - 12"

0.05 mm

1/128"

0.05 mm

.002"

DIN 862

rectangular
4100420

0 - 150

0.05 mm

0.05 mm

DIN 862

rectangular
4100421

0 - 200

0.05 mm

0.05 mm

DIN 862

rectangular
4100422

0 - 300

0.05 mm

0.05 mm

DIN 862

rectangular
