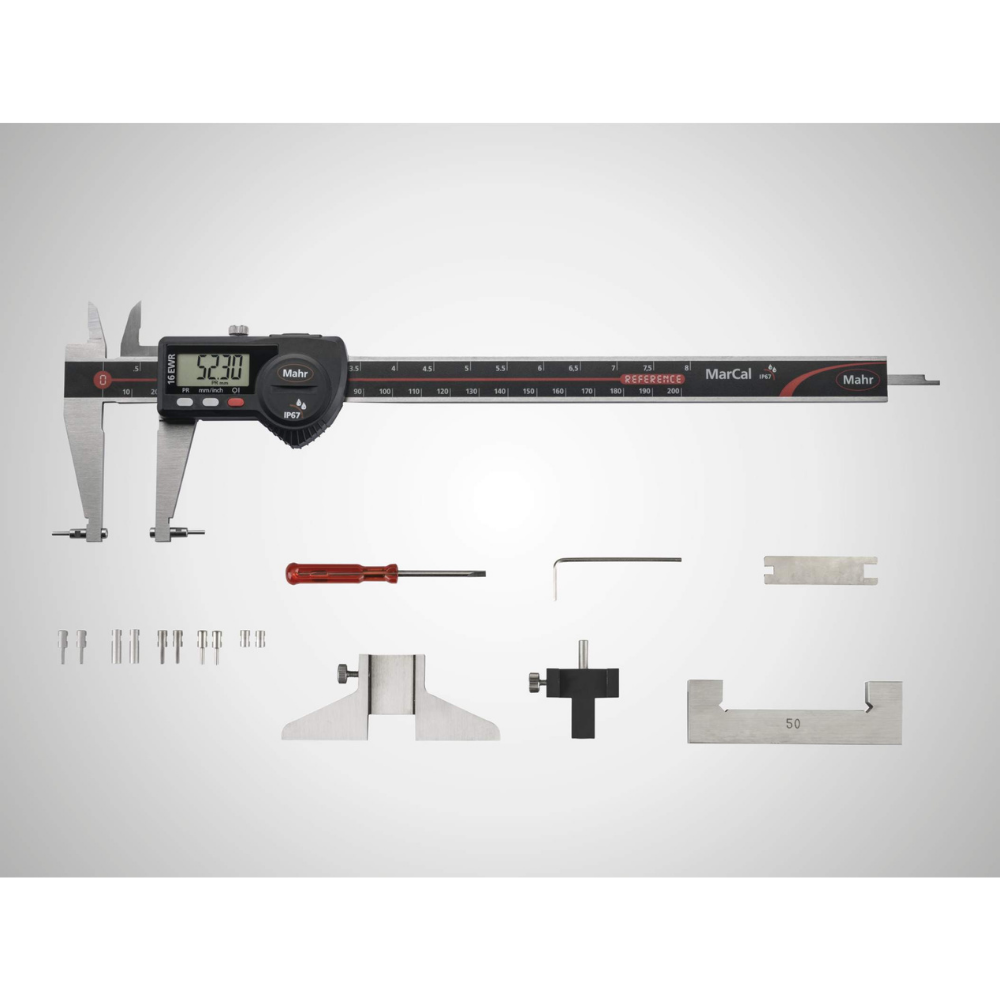

MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface

MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface
MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface gallery
MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface
MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface gallery

MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring blade for inside measurements

  • Slide and beam made of hardened stainless steel

  • Step measuring function

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Excellent resistance against dust, coolants and lubricants

  • Dirt wipers are integrated in the slide

  • USB

  • Opto RS232C

  • Digimatic

  • Wireless

  • IP 67

  • battery

  • instruction manual

  • case

  • Battery life approx. 3 years

Height of digits

  • 8.5 mm

Ask a question
Description

MarCal 16 EWR-V Digital universal caliper



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardDepth Rod
4118807

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

rectangular
4118808

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

rectangular



Functions

  • AUTO-ON / OFF

  • DATA (data transmission via connection cable)

  • ON/OFF

  • PRESET (for entering a numerical value)

  • RESET (set display to zero)

  • mm/inch

  • LOCK function (key lock)
