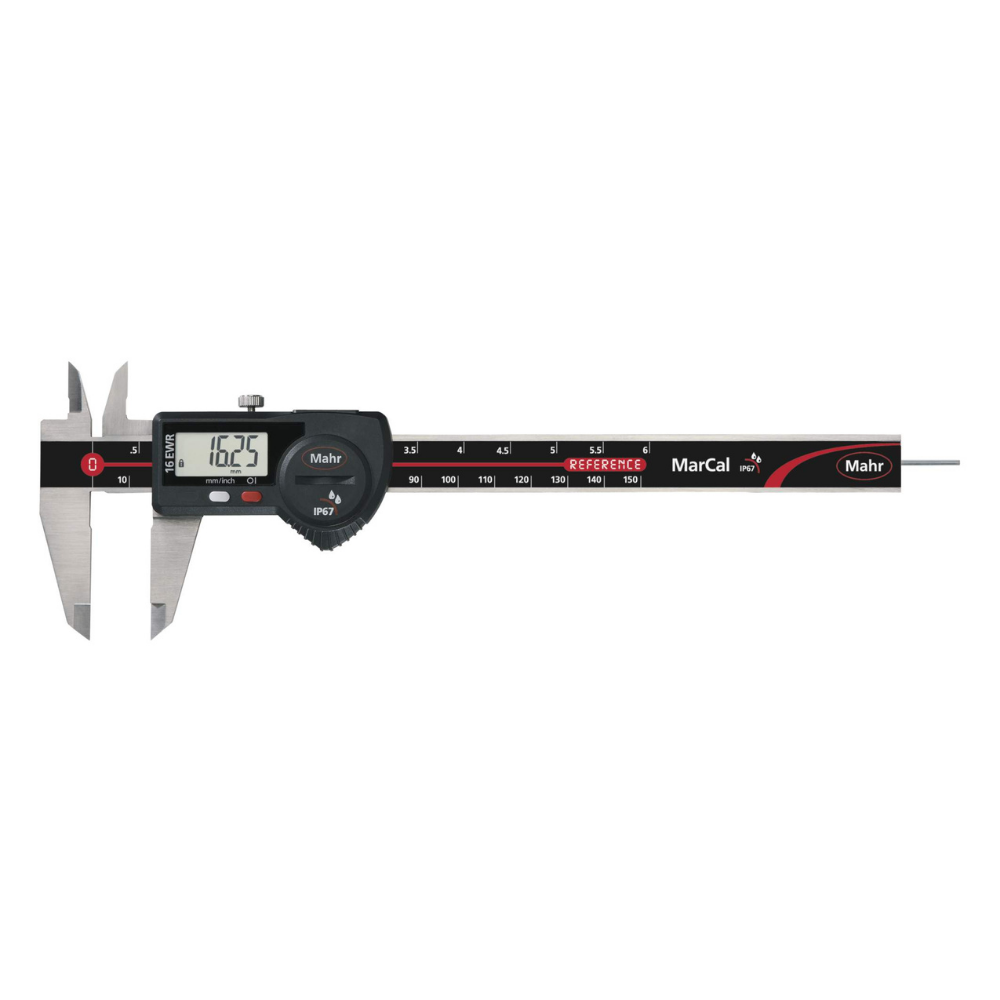

MAHR MarCal 16 EWR Digital Caliper, IP 67, Data interface

MAHR MarCal 16 EWR Digital Caliper, IP 67, Data interface
MAHR MarCal 16 EWR Digital Caliper, IP 67, Data interface

MAHR MarCal 16 EWR Digital Caliper, IP 67, Data interface

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring blade for inside measurements

  • Slide and beam made of hardened stainless steel

  • Step measuring function

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Excellent resistance against dust, coolants and lubricants

  • Dirt wipers are integrated in the slide

  • USB

  • Opto RS-232C

  • Digimatic

  • IP 67

  • battery

  • instruction manual

  • case

  • Battery life approx. 3 years

Height of digits

  • 8.5 mm

Ask a question
Description

MarCal 16 EWR Digital Caliper



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardFriction wheelDepth Rod
4103064

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

round
4103065

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

round
4103066

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103067

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103068

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103069

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103070

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

no

4103071

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

yes



Functions

  • ON/OFF

  • AUTO-ON / OFF

  • RESET (set display to zero)

  • mm/inch

  • LOCK function (key lock)

  • DATA (data transmission via connection cable)
