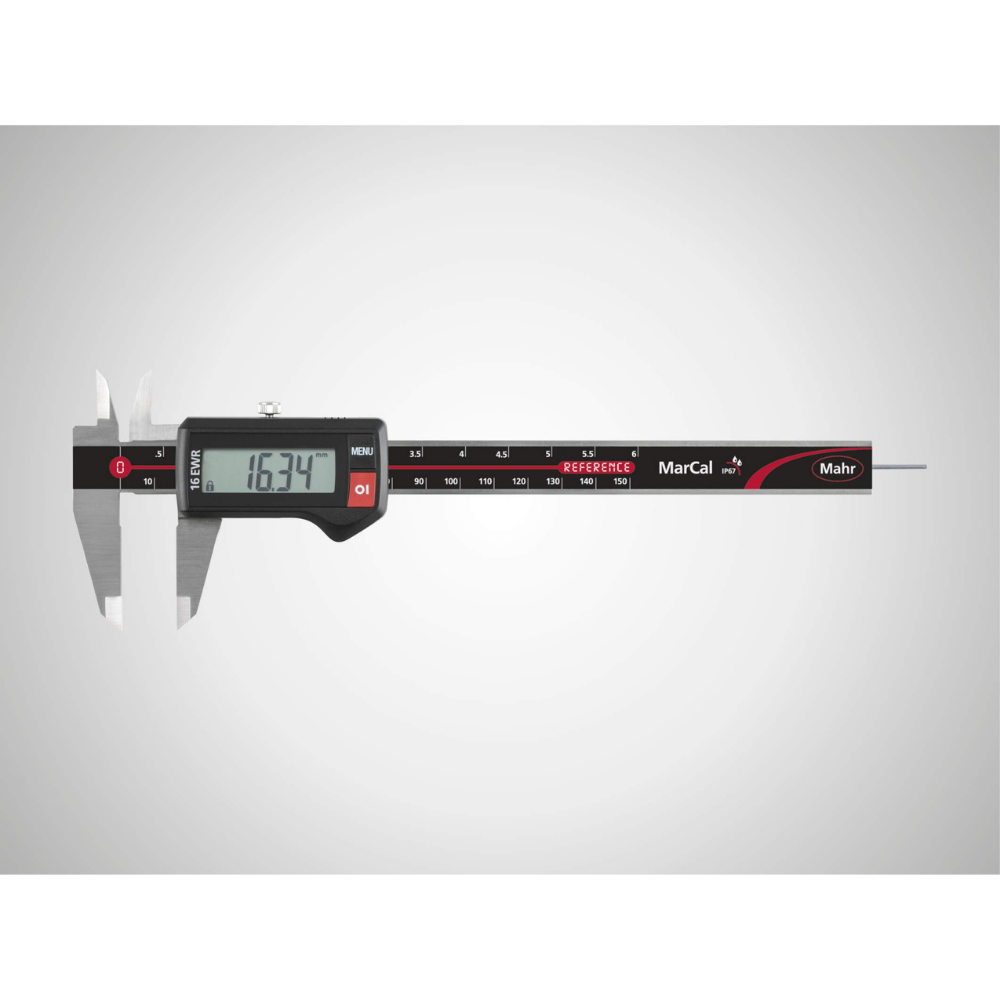

MAHR MarCal 16 EWR Digital Caliper, IP 67

MAHR MarCal 16 EWR Digital Caliper, IP 67
MAHR MarCal 16 EWR Digital Caliper, IP 67

MAHR MarCal 16 EWR Digital Caliper, IP 67

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring blade for inside measurements

  • Slide and beam made of hardened stainless steel

  • Step measuring function

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Excellent resistance against dust, coolants and lubricants

  • Dirt wipers are integrated in the slide

  • none

  • IP 67

  • battery

  • instruction manual

  • case

  • Battery life approx. 3 years

Height of digits

  • 11 mm

Ask a question
Description

MarCal 16 EWR Digital Caliper



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardFriction wheelDepth Rod
4103300

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

round
4103301

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

round
4103302

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103303

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103304

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103305

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103306

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

no

4103307

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

yes



Functions

  • ON/OFF

  • AUTO-ON / OFF

  • RESET (set display to zero)

  • PRESET (for entering a numerical value)

  • Reversal of counting direction

  • mm/inch

  • LOCK function (key lock)
