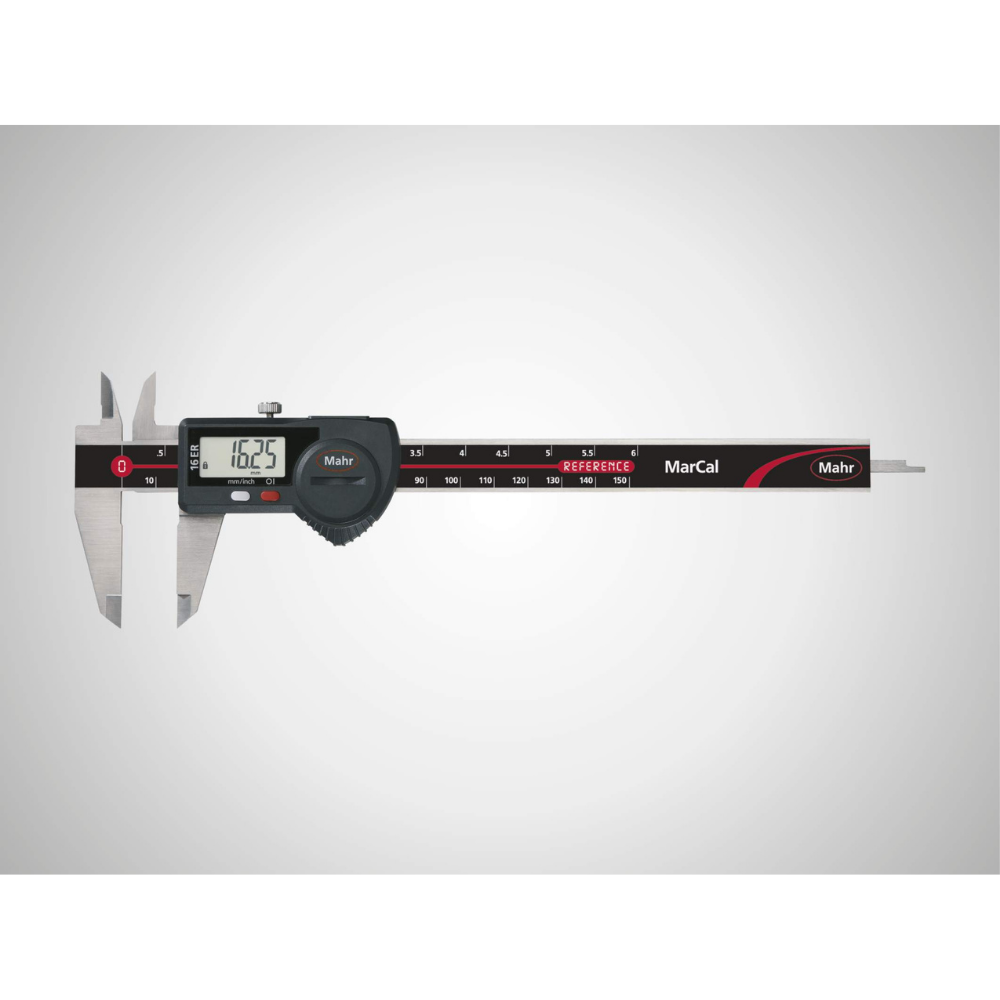

MAHR MarCal 16 ER Digital Caliper, Data interface

MAHR MarCal 16 ER Digital Caliper, Data interface
MAHR MarCal 16 ER Digital Caliper, Data interface

MAHR MarCal 16 ER Digital Caliper, Data interface

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring blade for inside measurements

  • Slide and beam made of hardened stainless steel

  • Step measuring function

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Dirt wipers are integrated in the slide

  • USB

  • Opto RS-232C

  • Digimatic

  • None

  • instruction manual

  • battery

  • case

  • Battery life approx. 3 years

Height of digits

  • 8.5 mm

Ask a question
Description

MarCal 16 ER Digital Caliper



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardFriction wheelDepth Rod
4103014

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

round
4103015

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

round
4103016

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103017

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103018

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103019

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103020

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

no

4103021

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

yes



Functions

  • ON/OFF

  • AUTO-ON / OFF

  • RESET (set display to zero)

  • mm/inch

  • LOCK function (key lock)

  • DATA (data transmission via connection cable)
