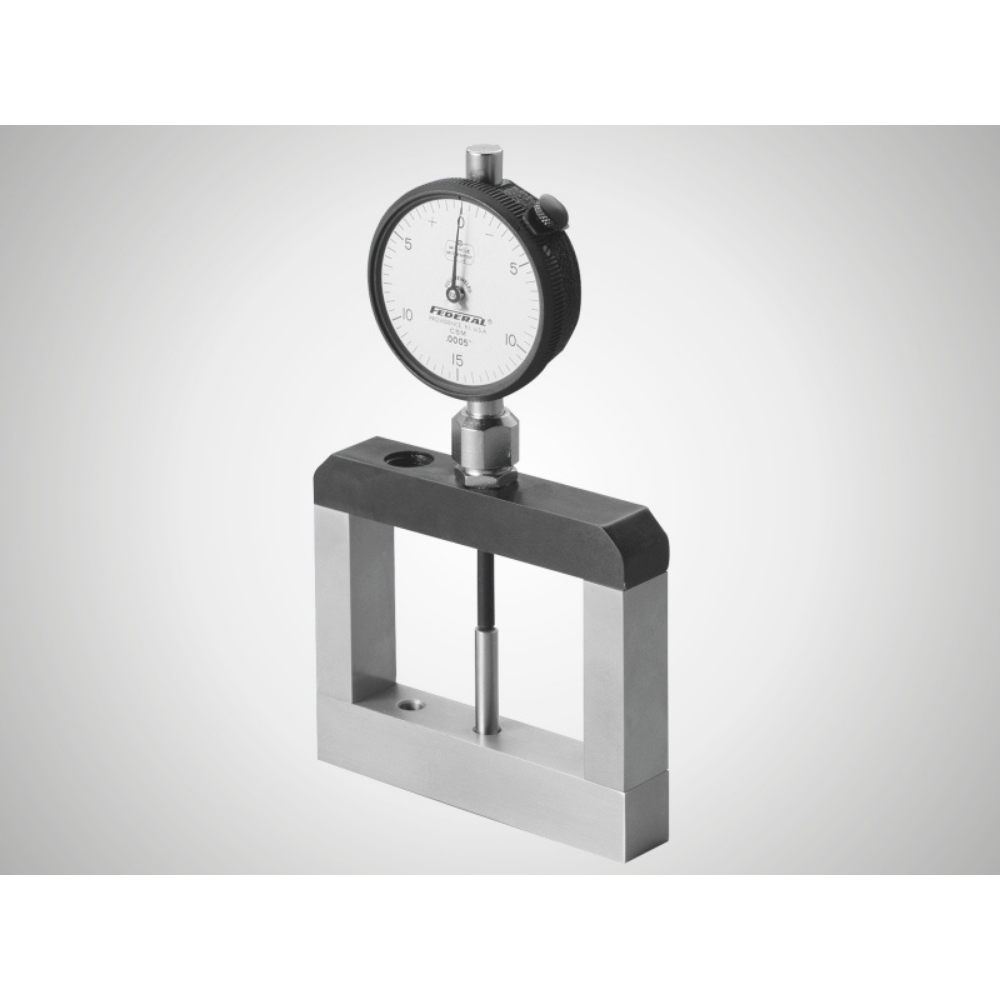

MAHR MaraMeter Depth gages

MAHR MaraMeter Depth gages
MAHR MaraMeter Depth gages

MAHR MaraMeter Depth gages

  • MaraMeter 65P-40 Indicating depth gage with needle contact and V-shaped base

  • MaraMeter (XLI-75B-2)

  • MaraMeter 75B-1M

  • MaraMeter 75B-1

  • MaraMeter 75P-55M

Ask a question
Description

MaraMeter 65P-40 Indicating depth gage with needle contact and V-shaped base

MaraMeter 65P-40 Indicating depth gage with needle contact and V-shaped base

  • V-shaped base and needle contact

  • Movement is Push-Down style









Technical data

Order no.Product typeMeasuring range inchGraduation value inch
2051075

65P-40

0 - .075"

.0005"





MaraMeter (XLI-75B-2)

MaraMeter (XLI-75B-2)

  • Available with dial indicator (75B-1 Models) or Maxμm®III and μMaxμm®II digital electronic indicators (EMD-75B and XLI-75B Models)

  • 89 x 102 mm / 3.50 x 4“ hardened, ground work surface provides excellent reference surface

  • Four #10-32 tapped holes provided for mounting part location fixturing

  • Indicator vertically adjustable over 32 mm / 1.25“

  • Two contact points provided, 6 mm / .25“ and 32 mm / 1.25“ to check features up to 50 mm / 2“ deep





Technical data

Order no.Product typeMeasuring range inchMeasuring range mmMeasuring bridge width inchBeam widthLength of beamMeasuring depth mm
2057552

(XLI-75B-1)

0 - 1"

0 - 25

3.5 inch

89 mm

102 mm

50 mm
2057553

(XLI-75B-2)

0 - .5"

0 - 12.5

38 mm



MaraMeter 75B-1M

Technical data

Order no.Product typeMeasuring range mmMeasuring bridge width inchBeam widthLength of beamGraduation value mmMeasuring depth mm
2051078

75B-1M

0 - 25

3.5 inch

89 mm

102 mm

0.01 mm

25 mm



MaraMeter 75B-1

Technical data

Order no.Product typeMeasuring range inchMeasuring bridge width inchBeam widthLength of beamGraduation value inchMeasuring depth mm
2051077

75B-1

0 - 1"

3.5 inch

89 mm

102 mm

.001"

25 mm



MaraMeter 75P-55M

MaraMeter 75P-55M

  • Single and multi-purpose bases with choice of comparative or direct measurement indicators

  • Collet mounting allows for interchanging indicators and bases to meet a wide range of requirements

  • Wide range of contact points available to cover any depth measurement

  • Setting masters available with anvil ground to specified depth (accuracy ±2.5µm/± .0001")







Technical data

Order no.Product typeMeasuring range mmMeasuring bridge diameter mmBeam widthLength of beamGraduation value mm
2051093

75P-50M

2,50

19 mm

50 mm

0.01 mm
2051095

75P-51M

2,50

19 mm

76 mm

0.01 mm
2051097

75P-52M

2,50

19 mm

102 mm

0.01 mm
2051099

75P-53M

2,50

19 mm

152 mm

0.01 mm
2051101

75P-54M

2,50

19 mm

203 mm

0.01 mm
2051103

75P-55M

2,50

19 mm

0.01 mm
2051105

75P-56M

2,50

32 mm

0.01 mm
