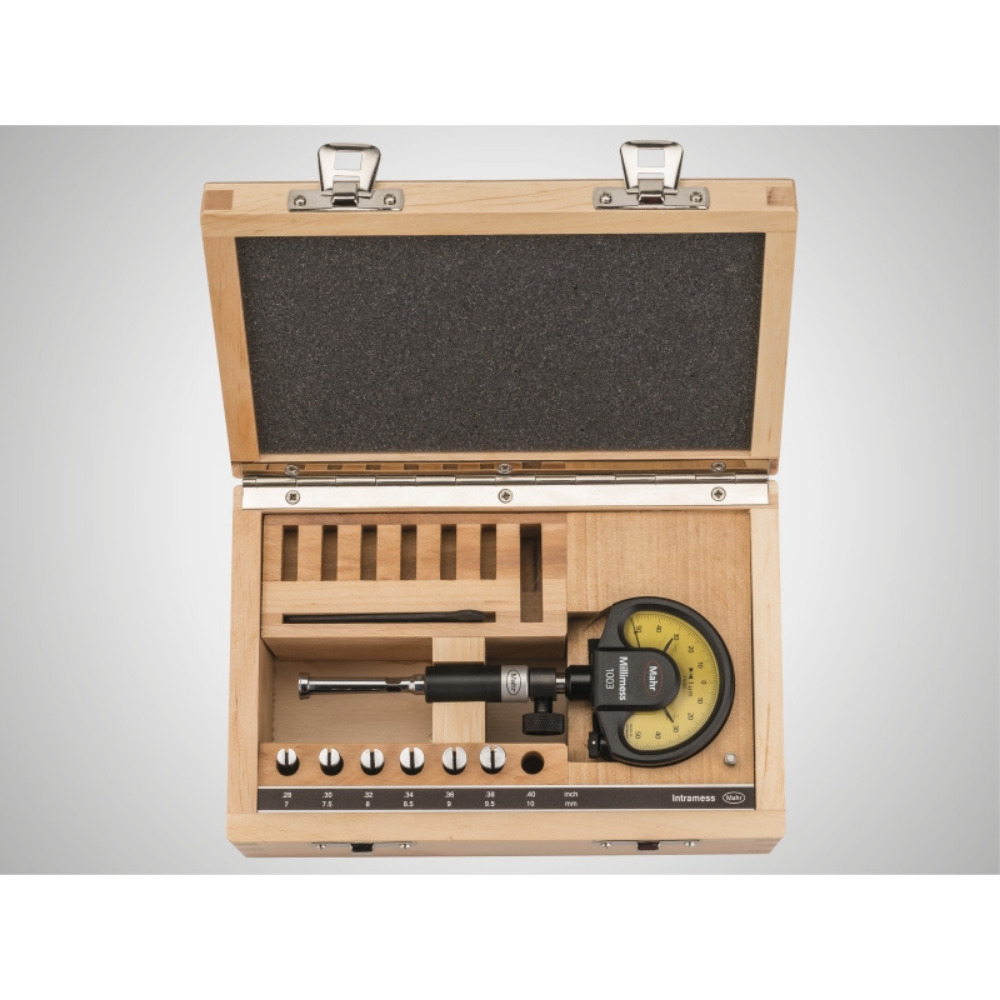

MAHR MaraMeter 844 K Self-centering dial bore gages

MAHR MaraMeter 844 K Self-centering dial bore gages
MAHR MaraMeter 844 K Self-centering dial bore gages

MAHR MaraMeter 844 K Self-centering dial bore gages

  • MaraMeter 844 K Self-centring dial bore gage

  • MaraMeter 844 KH Self-centring dial bore gage

  • MaraMeter 844 KS Self-centring dial bore gage

Ask a question
Description

MaraMeter 844 K Self-centring dial bore gage



  • Maximum wear resistance due to hard chrome plating

  • Constant measuring force as a result of built-in spring, eliminating user influence

  • Highly versatile

    - Each gage covers a broad range

    - Quickly and easily adjustable to any size and type of measuring application (within the limits)

  • Extensive modular system is composed of measuring probe, holder, depth extensions, right angle attachments and depth stops

Technical data

Order no.Nominal size mmProduct typeMeasuring range mmNumber of measuring probesRepeatability fw (µm)
4470000

0,50

0,55

0,60

0,70

0,80

0,90

844 K

0.47 - 0.97

6 Stück

1 µm
4470001

1,00

1,10

1,20

1,30

1,40

844 K

0.95 - 1.55

5 Stück

1 µm
4470002

1,75

2,00

2,25

2,50

2,75

3,00

3,25

3,50

3,75

4,00

844 K

1.5 - 4.2

10 Stück

1 µm
4470003

4,00

4,50

5,00

5,50

6,00

6,50

7,00

844 K

3.7 - 7.3

7 Stück

1 µm
4470004

7,50

8,00

8,50

9,00

9,50

10,00

844 K

6.7 - 10.3

7 Stück

1 µm
4470005

10,00

11,00

12,00

13,00

14,00

15,00

16,00

17,00

18,00

844 K

9.4 - 18.6

9 Stück

1 µm





MaraMeter 844 KH Self-centring dial bore gage



  • Maximum wear resistance due to carbide tipped faces

  • Constant measuring force as a result of built-in spring, eliminating user influence

  • Highly versatile

    - Each gage covers a broad range

    - Quickly and easily adjustable to any size and type of measuring application (within the limits)

  • Extensive modular system is composed of measuring probe, holder, depth extensions, right angle attachments and depth stops

Technical data

Order no.Nominal size mmProduct typeMeasuring range mmNumber of measuring probesRepeatability fw (µm)
4471002

1,75

2,00

2,25

2,50

2,75

3,00

3,25

3,50

3,75

4,00

844 KH

1.5 - 4.2

10 Stück

1 µm
4471003

4,00

4,50

5,00

5,50

6,00

6,50

7,00

844 KH

3.7 - 7.3

7 Stück

1 µm
4471004

7,50

8,00

8,50

9,00

9,50

10,00

844 KH

7.2 - 10.3

7 Stück

1 µm
4471005

10,00

11,00

12,00

13,00

14,00

15,00

16,00

17,00

18,00

844 KH

9.4 - 18.6

9 Stück

1 µm





MaraMeter 844 KS Self-centring dial bore gage



  • Maximum wear resistance due to hard chrome plating

  • Constant measuring force as a result of built-in spring, thus eliminating user influence

  • Highly versatile

    - Each gage covers a broad range

    - Quickly and easily adjustable to any size and type of measuring application (within the limits)

  • Extensive modular system is composed of measuring probe, holder, depth extensions, right angle attachments and depth stops

Technical data

Order no.Nominal size mmProduct typeMeasuring range mmNumber of measuring probesRepeatability fw (µm)
4482163

1,75

2,00

2,25

2,50

2,75

3,00

3,25

3,50

3,75

4,00

844 KS

1.5 - 4.2

10 Stück

1 µm
4482164

4,00

4,50

5,00

5,50

6,00

6,50

7,00

844 KS

3.7 - 7.3

7 Stück

1 µm
4482165

7,50

8,00

8,50

9,00

9,50

10,00

844 KS

6.7 - 10.3

7 Stück

1 µm
4482166

10,00

11,00

12,00

13,00

14,00

15,00

16,00

17,00

18,00

844 KS

9.4 - 18.6

9 Stück

1 µm
