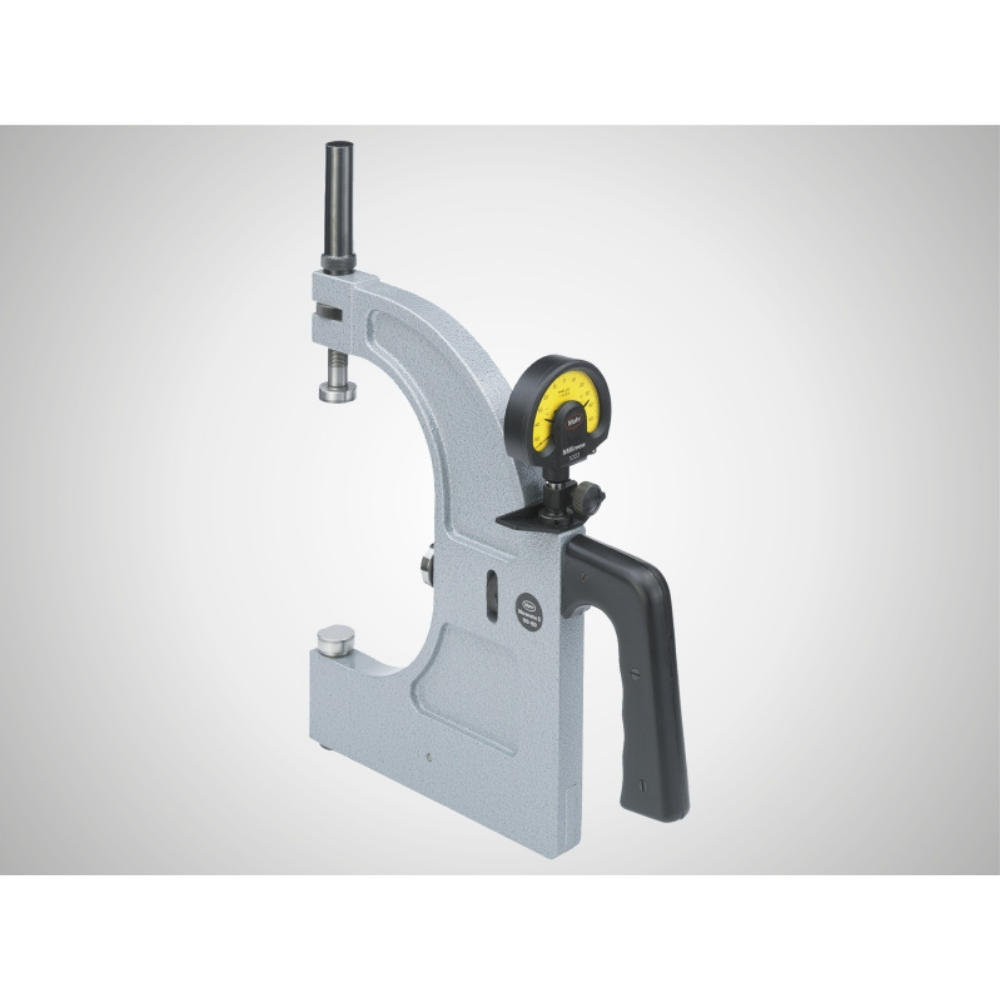

MAHR MaraMeter 840 FS Indicating snap gage

Rugged, forged steel frame with heat insulators

Both spindles are made of hardened stainless steel and mounted in long guideways

Carbide tipped measuring faces slightly chamfered at the front to facilitate positioning

Projects over width of frame for measurement of narrow registers or when measuring directly at shoulders

Adjustable centering stop for surface centering

Straight transfer of spindle movement to indicator; ensures the weight of the gage rests on the anvil spindle

Direct indication and evaluation of measurement results

Constant measuring force as a result of built-in spring, eliminating user influence

Ask a question

Description

MAHR MaraMeter 840 FS Indicating snap gage

Technical data

Order no.	Product type	Application range mm	Measuring span in mm	Parallel error in µm	Flatness in µm	Repeatability fw (µm)	Measuring force	Product weight
4455000	840 FS	10 - 30	0.7 mm	3 µm	0.5 µm	1 µm	13.5 N	0.6 kg
4455001	840 FS	30 - 60	0.7 mm	3 µm	0.5 µm	1 µm	13.5 N	0.9 kg
4455002	840 FS	60 - 100	0.7 mm	3 µm	0.5 µm	1 µm	13.5 N	1.3 kg
4455003	840 FS	100 - 150	0.7 mm	3 µm	0.5 µm	1 µm	15 N	1.7 kg
4455004	840 FS	150 - 200	0.7 mm	3 µm	0.5 µm	1 µm	15 N	2 kg
4455005	840 FS	200 - 250	0.7 mm	3 µm	0.5 µm	1 µm	15 N	2.2 kg
4455006	840 FS	250 - 300	0.7 mm	3 µm	0.5 µm	1 µm	15 N	2.5 kg
4455007	840 FS	300 - 350	0.7 mm	4 µm	0.5 µm	1 µm	15 N	3.3 kg
4455008	840 FS	350 - 400	0.7 mm	4 µm	0.5 µm	1 µm	15 N	3.3 kg
4455009	840 FS	400 - 450	0.7 mm	4 µm	0.5 µm	1 µm	15 N	4.3 kg
4455010	840 FS	450 - 500	0.7 mm	4 µm	0.5 µm	1 µm	15 N	4.7 kg
