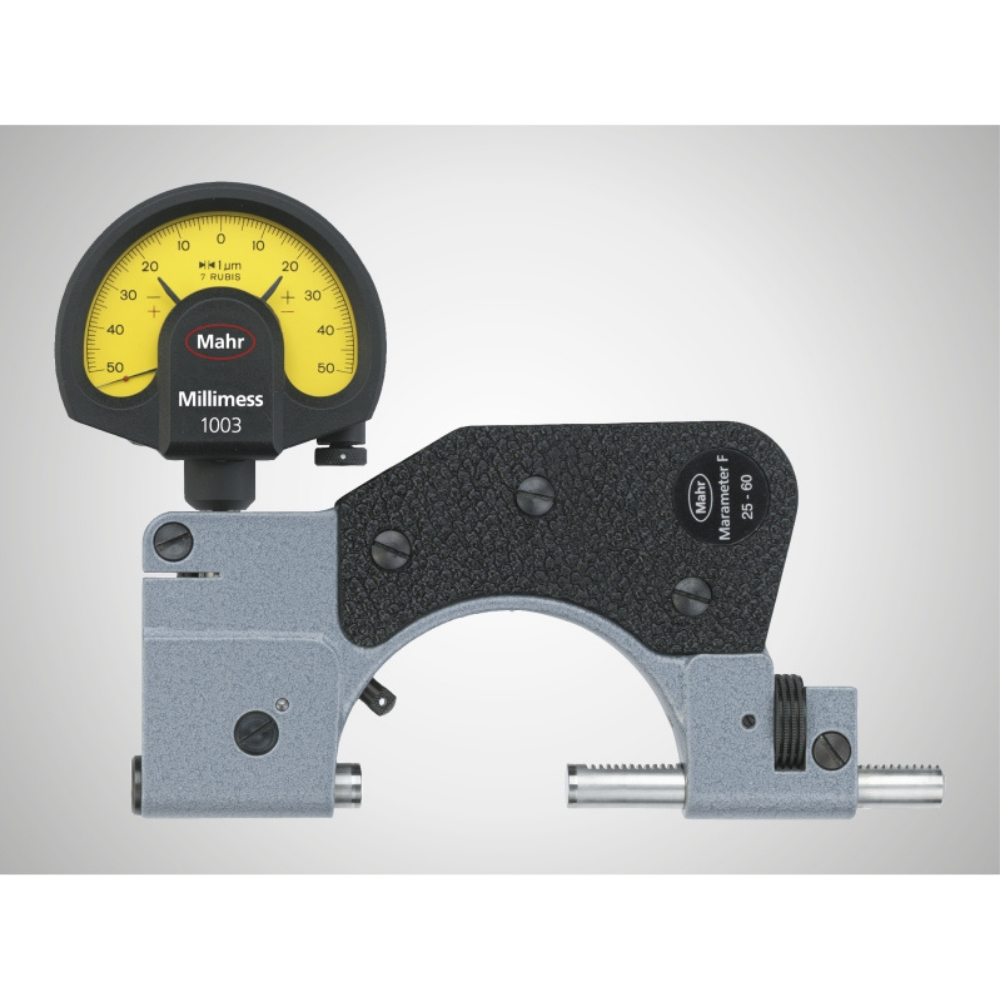

MAHR MaraMeter 840 FC Indicating snap gage

MAHR MaraMeter 840 FC Indicating snap gage
MAHR MaraMeter 840 FC Indicating snap gage

MAHR MaraMeter 840 FC Indicating snap gage

  • Rugged, forged steel frame with heat insulators

  • Measuring spindle is mounted in long guideway with lever controlled retraction

  • Measuring spindle and anvil spindle are both made of hardened stainless steel, ceramic measuring faces

  • Adjustable centering stop for surface centering

  • Anvil spindle can easily be fine adjusted

  • Constant measuring force as a result of built-in spring, eliminating user influence

  • Maximum wear resistance due to non-contact positioning in conjunction with carbide tipped measuring faces in connection with ceramic measuring faces


Ask a question
Description
Technical data

Order no.Product typeApplication range mmMeasuring span in mmParallel error in µmFlatness in µmRepeatability fw (µm)Measuring force
4450100

840 FC

0 - 25

2 mm

1 µm

0.2 µm

1 µm

7.5 N
4450101

840 FC

25 - 60

2 mm

2 µm

0.2 µm

1 µm

7.5 N
