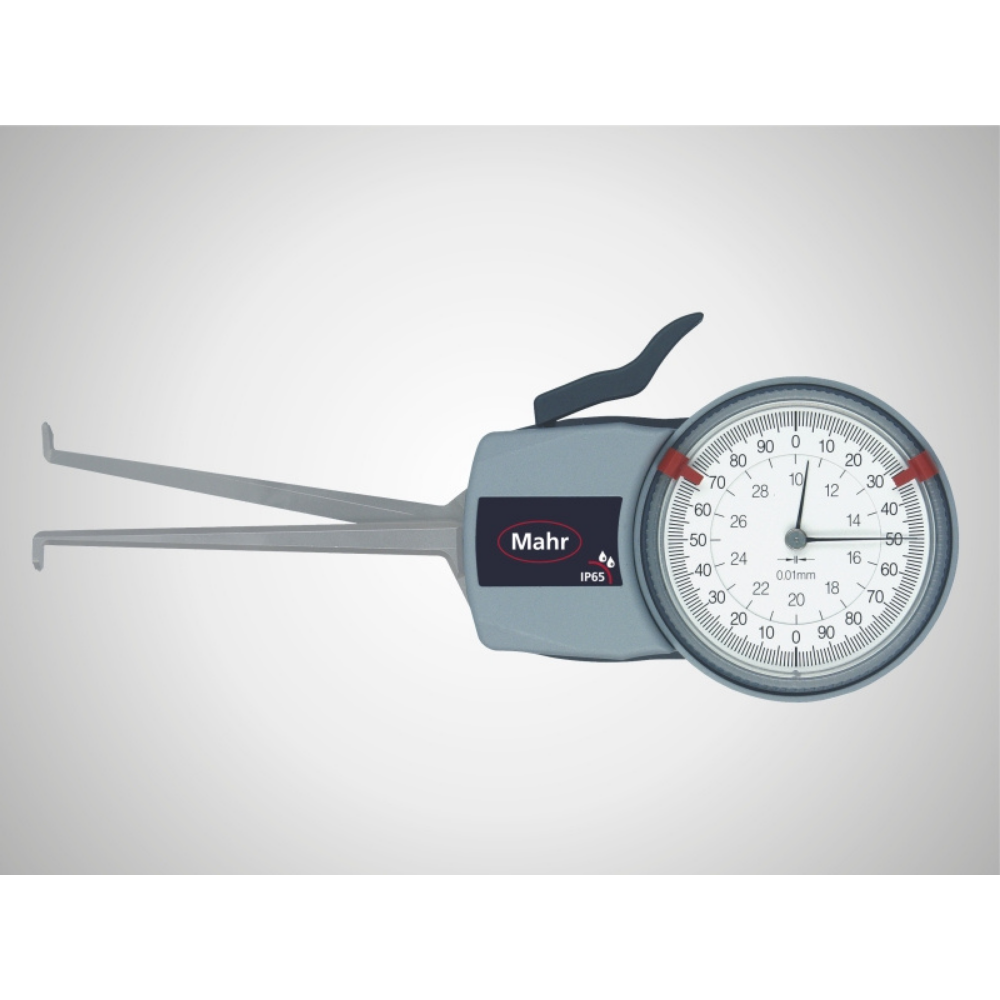

| Order no. | Product type | Measuring range mm | Graduation value mm | Repeatability mm | Error limit (mm) | Measuring force (N) | Measuring depth mm | Measuring contact ball diameter mm | Length of moving measuring contact | Groove depth | Groove width | Length of fixed measuring contact |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4495580 | 838 TI | 5 - 15 | 0.005 mm | 0.005 mm | 0.015 mm | 0.8 - 1.2 | 35 mm | 0.6 mm | 2.5 mm | 2.3 mm | 0.8 mm | 2.5 mm |
| 4495581 | 838 TI | 10 - 30 | 0.01 mm | 0.01 mm | 0.03 mm | 1.1 - 1.6 | 85 mm | 1 mm | 5.4 mm | 5.2 mm | 1.2 mm | 5.4 mm |
| 4495582 | 838 TI | 20 - 40 | 0.01 mm | 0.01 mm | 0.03 mm | 1.1 - 1.6 | 85 mm | 1 mm | 7.3 mm | 7 mm | 1.2 mm | 7.3 mm |
| 4495583 | 838 TI | 30 - 50 | 0.01 mm | 0.01 mm | 0.03 mm | 1.1 - 1.6 | 85 mm | 1 mm | 7.3 mm | 7 mm | 1.2 mm | 7.3 mm |
| 4495584 | 838 TI | 40 - 60 | 0.01 mm | 0.01 mm | 0.03 mm | 1.1 - 1.6 | 85 mm | 1 mm | 12.2 mm | 8.3 mm | 1.2 mm | 12.2 mm |
| 4495585 | 838 TI | 50 - 70 | 0.01 mm | 0.01 mm | 0.03 mm | 1.1 - 1.6 | 85 mm | 1 mm | 12.2 mm | 8.3 mm | 1.2 mm | 12.2 mm |
| 4495586 | 838 TI | 15 - 65 | 0.05 mm | 0.025 mm | 0.05 mm | 0.9 - 1.9 | 188 mm | 1.5 mm | 6 mm | 5.5 mm | 1.9 mm | 6 mm |
| 4495587 | 838 TI | 40 - 90 | 0.05 mm | 0.025 mm | 0.05 mm | 0.9 - 1.9 | 192 mm | 2 mm | 8.5 mm | 8.3 mm | 2.4 mm | 8.5 mm |
