MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation
MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

  • MaraMeter 57B-13 Portable thickness gages

  • MaraMeter XLI-57B-13 Portable thickness gages

  • MaraMeter 57B-13M Portable thickness gages

  • MaraMeter 57B-12 Portable thickness gages

  • MaraMeter 57B-12M Portable thickness gages

  • MaraMeter Portable thickness gages

  • MaraMeter XLI-57B-15 Portable thickness gages

  • MaraMeter 57B-15M Portable thickness gages

  • MaraMeter 57B-15 Portable thickness gages

Ask a question
Description

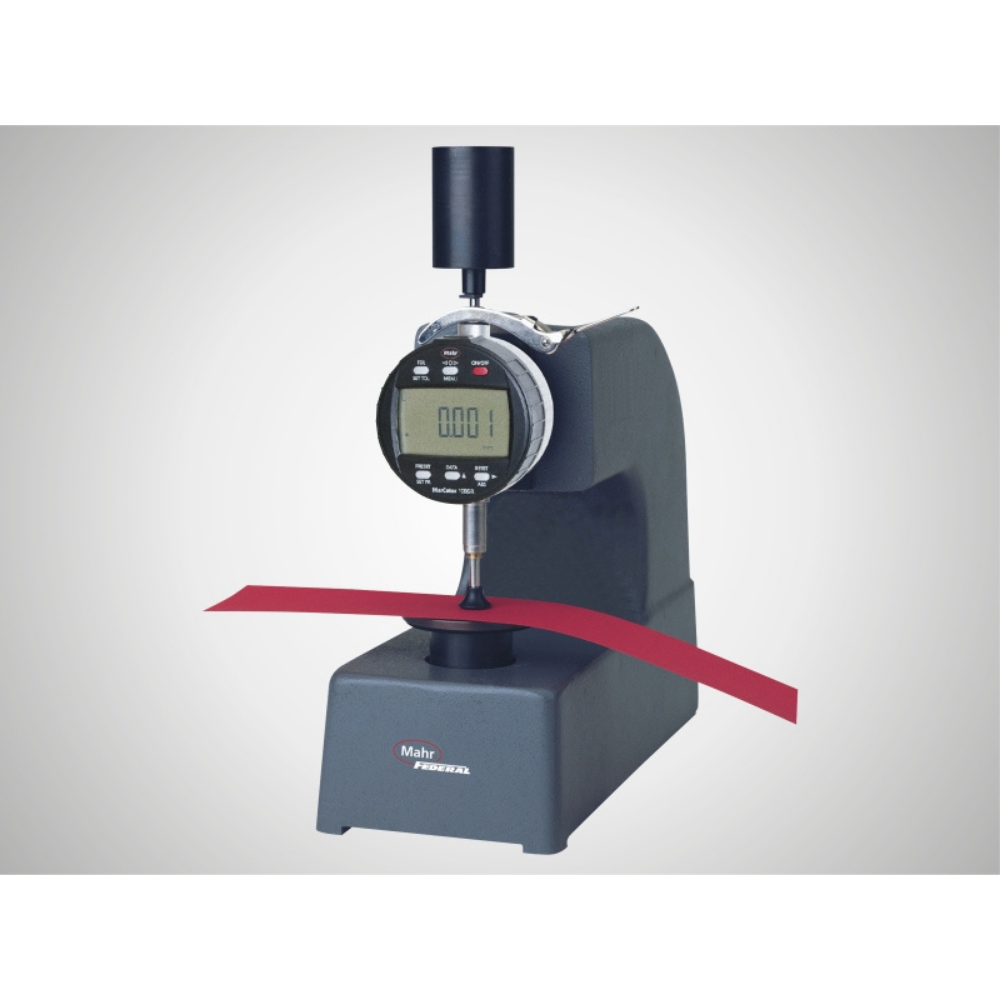

MaraMeter 57B - Thickness gage for measuring wall thickness of wire insulation



MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

  • Using the basic design of the Model 57B-13 (Model 57B-13M — Metric) gage, the lower contact is PT-103, 1.10 mm / .043” diameter rod, mounted horizontally

  • Upper contact is a flat chisel contact , in line with the rod

  • By slipping tubular parts onto the lower contact, the gage can measure the wall thickness of the tube

  • An auxiliary weight on the indicator provides a total dead weight load of 25 grams

  • Digital indicator includes integrated wireless transmitter





Technical Data

MaraMeter 57B-13 Portable thickness gages

Order no.Product typeMeasuring range inchThroat depth mmGraduation value inchMeasuring force
2050980

57B-13

0 - .30"

102 mm

.0005"

0.25 N



MaraMeter XLI-57B-13 Portable thickness gages

Order no.Product typeMeasuring range inchMeasuring range mmThroat depth mmMeasuring force
2057550

XLI-57B-13

0 - .30"

0 - 7.62

102 mm

0.25 N



MaraMeter 57B-13M Portable thickness gages

Order no.Product typeMeasuring range mmThroat depth mmGraduation value mmMeasuring force
2050981

57B-13M

0 - 7.6

102 mm

0.01 mm

0.25 N
