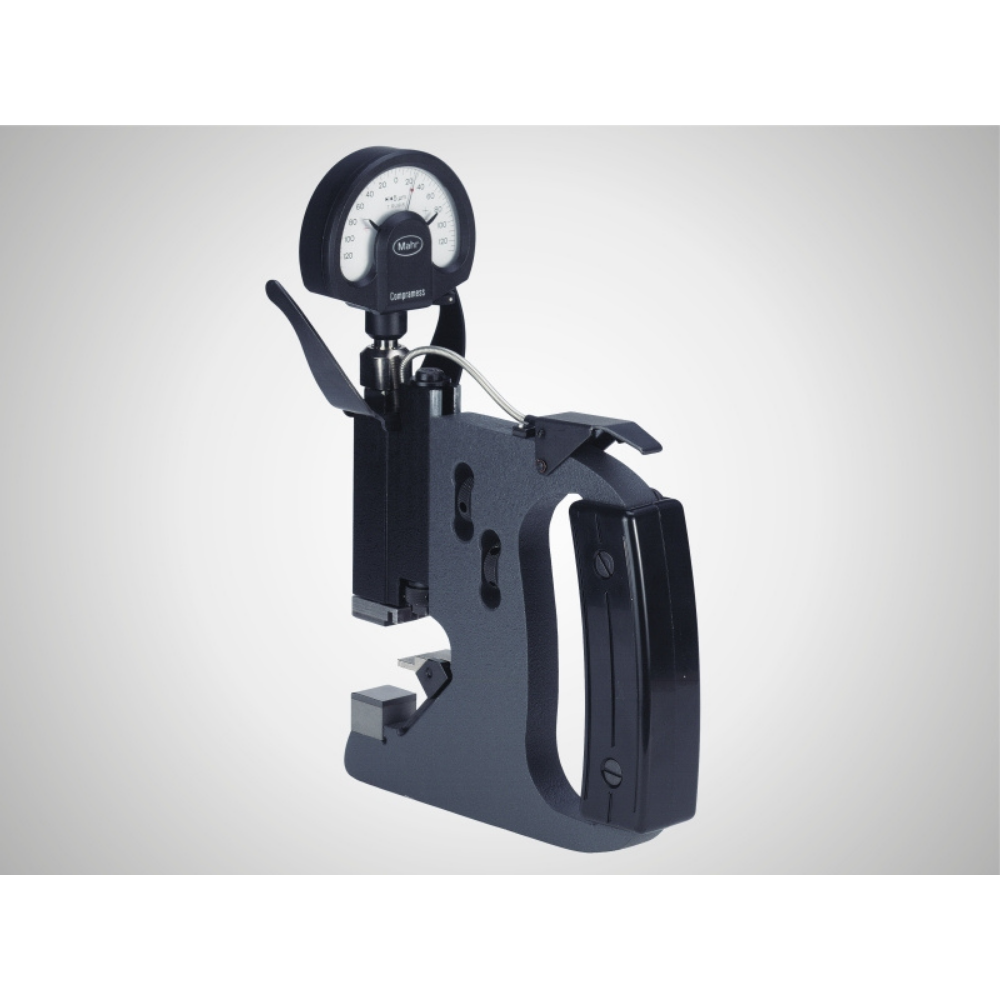

MAHR MaraMeter 301P Indicating snap gage

MARAMETER A301P-7 INDICATING SNAP GAGE

Ask a question

Description

MaraMeter A301P-7 Indicating snap gage

Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment

All Series 300P snap gages are fully adjustable with positive position locking at any point within the rang

0.50 mm / .020“ movement of sensitive contact

Snap gages available over a wide range of sizes, styles, and readout configurations

Large 15.5 mm / .61“ square tungsten carbide anvils provide flat, parallel, working surfaces that ensure lasting precision that lasts

Indicator can be rotated to read from front or rear of the gage

All adjustments accomplished using a single hex wrench (furnished)

Technical data

Order no.	Product type	Application range mm	Measuring span in mm	Size of measuring surface in mm	Parallel error in µm	Measuring force
2051182	A301P-1	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051184	A301P-2	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051185	A301P-3	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051186	A301P-4	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051187	A301P-5	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051188	A301P-6	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051189	A301P-7	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051190	A301P-8	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N
2051191	A301P-9	-	0.5 mm	15,5 x 15,5 mm	4 µm	18 N

Order no.

Product type

Application range mm

Measuring span in mm

Size of measuring surface in mm

Parallel error in µm

Measuring force

2051182

A301P-1

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051184

A301P-2

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051185

A301P-3

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051186

A301P-4

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051187

A301P-5

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051188

A301P-6

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051189

A301P-7

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051190

A301P-8

0.5 mm

15,5 x 15,5 mm

4 µm

18 N

2051191

A301P-9

0.5 mm

15,5 x 15,5 mm

4 µm

18 N
