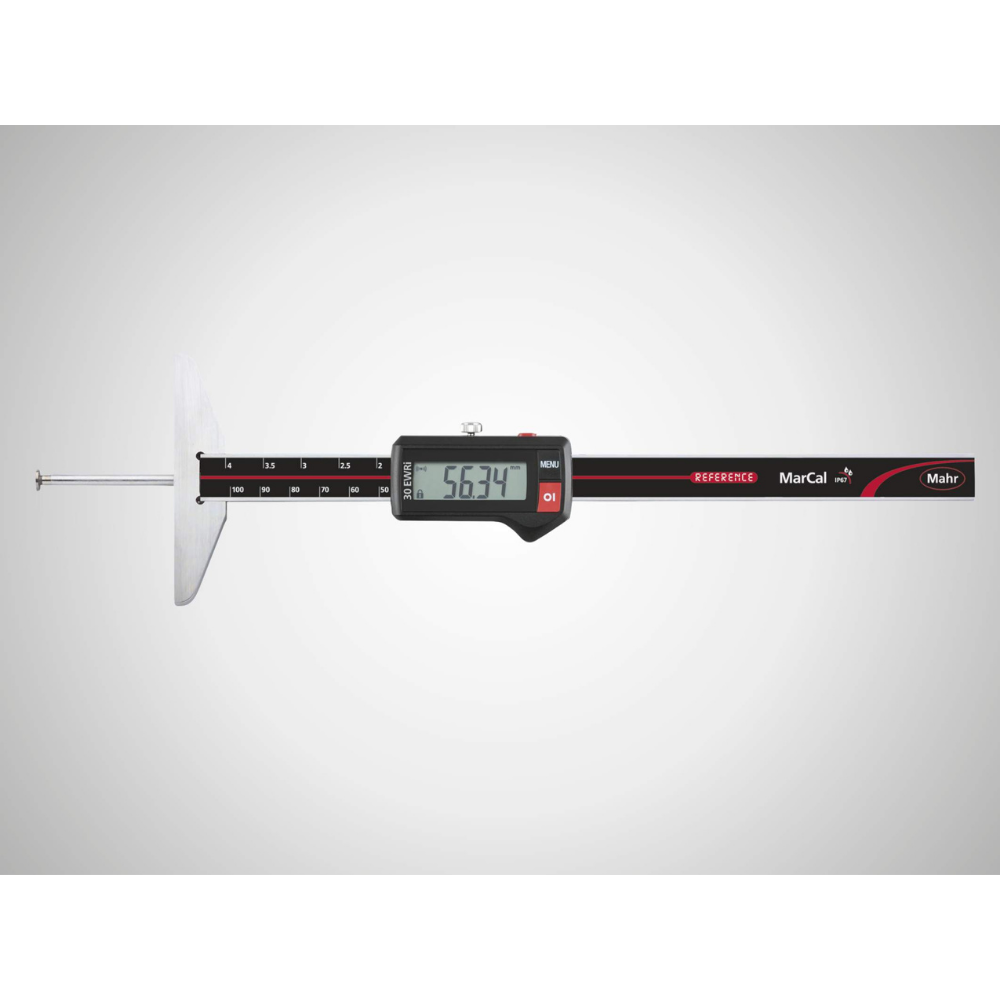

MAHR 30 EWR-N / 30 EWRi-N Digital depth caliper, IP 67, with changeable anvils

MAHR 30 EWR-N / 30 EWRi-N Digital depth caliper, IP 67, with changeable anvils
MAHR 30 EWR-N / 30 EWRi-N Digital depth caliper, IP 67, with changeable anvils

MAHR 30 EWR-N / 30 EWRi-N Digital depth caliper, IP 67, with changeable anvils

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring surfaces made of steel

  • Slide and beam made of hardened stainless steel

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Excellent resistance against dust, coolants and lubricants

  • Dirt wipers are integrated in the slide

  • Integrated wireless

  • IP 67

  • battery

  • instruction manual

  • anvils 30 Ent (1mm), 902 (4mm) and 903 (4mm)

  • case

  • Battery life approx. 3 years (approx. 0.5 in wireless mode)

Height of digits

  • 11 mm

Ask a question
Description

30 EWR-N / 30 EWRi-N Digital depth caliper



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandard
4126513

0 - 100

0 - 4"

0.01 / .0005"

0.03 mm

.001"

Factory standard
4126532

0 - 100

0 - 4"

0.01 / .0005"

0.03 mm

.001"

Factory standard



Functions

  • ON/OFF

  • AUTO-ON / OFF

  • mm/inch

  • LOCK function (key lock)

  • RESET (set display to zero)

  • PRESET (for entering a numerical value)

  • DATA (data transmission)

  • HOLD (storage of measured values)
