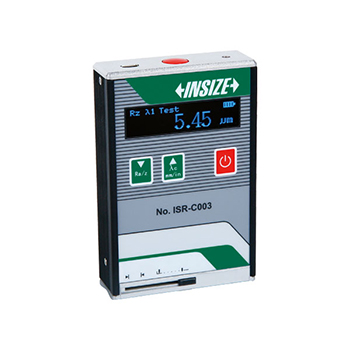

Insize Roughness Tester ISR-C003

Insize Roughness Tester ISR-C003
Insize Roughness Tester ISR-C003

Insize Roughness Tester ISR-C003

Features:

  • Unit: um, uin

  • Automatic power off

  • For checking, identifying and specifying the roughness by symbol

  • Made of carbon steel

  • Includes main unit, calibration block, AC/DC adapter

Ask a question
Description
The INSIZE ISR-C003 Roughness Tester has the following specifications:

  • Parameters: Ra, Rz, Rq, Rt

  • Range: Ra, Rq: 2-590uin. Rz, Rt: 4-1968uin

  • Accuracy: ±10%

  • Resolution (Ra): .01uin

  • Probe Type: Piezoelectric

  • Probe Stylus Radius/Angle: 393uin/90°

  • Probe Stylus Material: Diamond

  • Measuring Force: 0.12ofz

  • Measuring Unit: uin/um

  • Cut off: .01/.03/.1″

  • Evaluation Length: .05″ for cut off .01″, .15″ for cut off .03″, .2 for cut off .1″

  • Number of Cut-offs: 1 to 5

  • Traverse Speed: .03″/s

  • Dimension: 4.17×2.75×2.94″

  • Output: USB

  • Weight: .44lb
