High accuracy internal measurement Ultima

High accuracy internal measurement Ultima
High accuracy internal measurement Ultima

High accuracy internal measurement Ultima

High resolution / Range from 2 to 310mm
Ask a question
Description

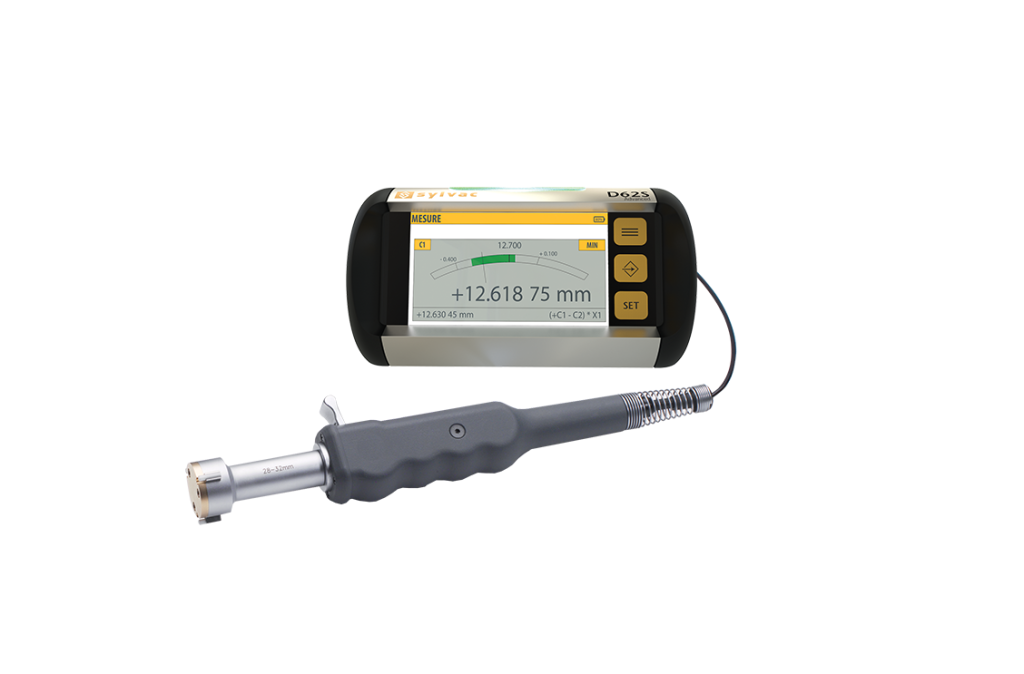

Ultima

  • Ultima handles and kits with display unit D62S Advanced und absolute digital probe P12D

  •  Measuring range from 2 to 310 mm

  •  Resolution up to 0.0001 mm

  •  Mechanical repeatability : 1μm from 2 to 60 mm, 1.5μm from 60 to 210 mm and 2μm from 210 to 310 mm

  •  Robust construction designed for use by inspection and machine shop

  •  UKAS certificate supplied with each head

  •  UKAS certificate supplied with each setting ring.

  •  Rings manufactured according to DIN 2250 part 2 (standard)

  •  Blind bore measuring from 12 to 310 mm

  •  Compatible with all Sylvac digital display

  •  Special heads on request ( threads, grooves, splines, slot width, etc...)
