Helmut-Fischer SIGMASCOPE SMP350 for electrical conductivity measurement

Helmut-Fischer SIGMASCOPE SMP350 for electrical conductivity measurement
Helmut-Fischer SIGMASCOPE SMP350 for electrical conductivity measurement

Helmut-Fischer SIGMASCOPE SMP350 for electrical conductivity measurement

Mobile device for fast, non-destructive testing of the ferrite content of steels, for example in pressure vessels and pipework, according to the magnetic induction method.
Ask a question
Description Features

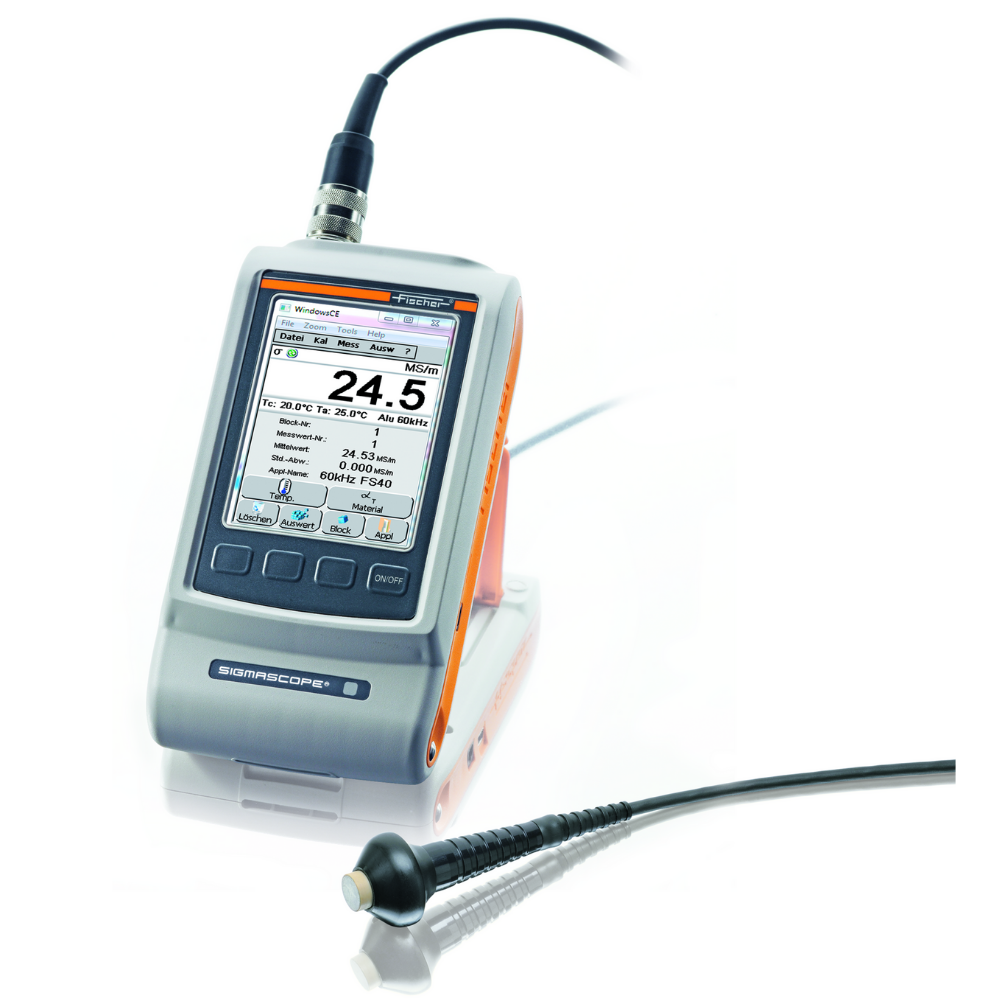

SIGMASCOPE SMP350

for electrical conductivity measurement



SIGMASCOPE SMP350 is a compact handheld device for determining the electrical conductivity of non-ferrous metals such as aluminum or copper. The measured conductivity further enables you to draw conclusions about the hardness and strength of heat-treated materials. Evidence of heat damage and material fatigue can thus be established. For this, the phase-sensitive eddy current method is used, which is approved for the measurement of conductivity according to DIN EN 2004-1 and ASTM E 1004.

  • Fast, non-destructive and precise measurement of the electrical conductivity of non-ferrous metals according to DIN EN 2004-1 and ASTM E 1004

  • Conductivity probes for a range of applications

  • Various measurement frequencies for different penetration depths, from 15 kHz to 1 MHz, depending on the probe

  • Automatic curvature compensation for known curvature diameters (down to the smallest diameter of 6 mm)

  • We offer certified measurement standards (in MS/m, %IACS), which are traceable to internationally recognized calibration standards
