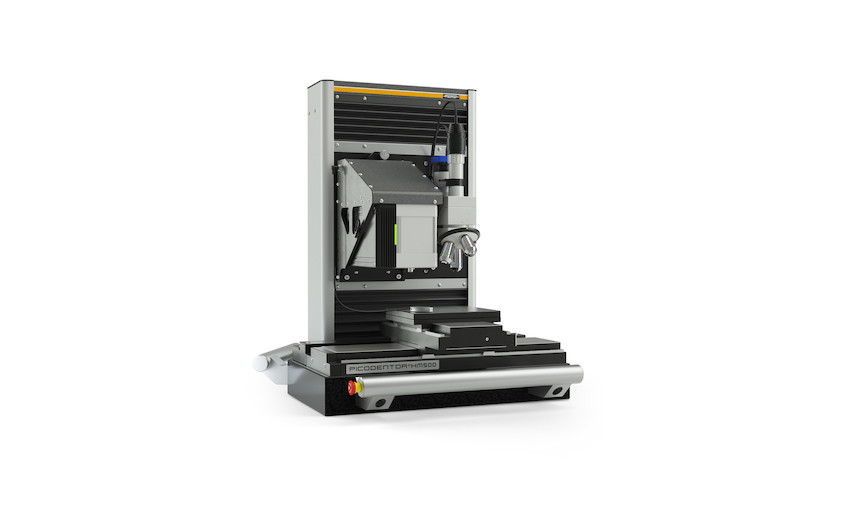

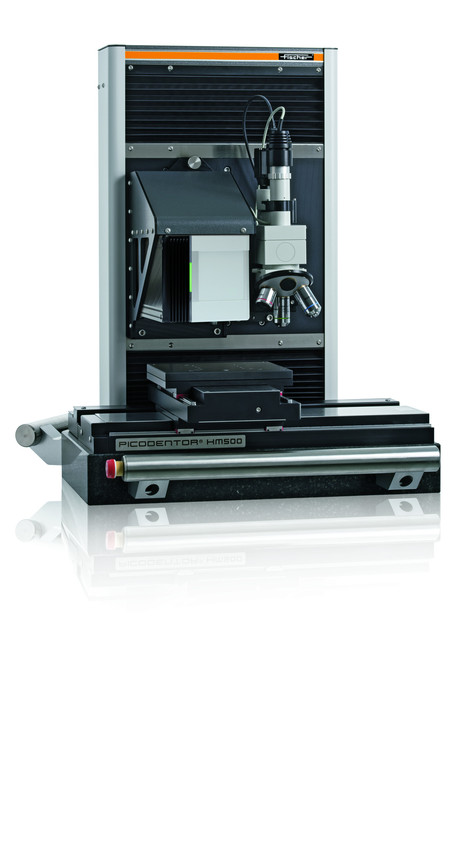

Helmut-Fischer PICODENTOR HM500 for demanding tasks

PICODENTOR HM500

for demanding tasks



PICODENTOR HM500 is Fischer's highest performance indentation measurement instrument. Normally, only very elaborate and extremely costly measurement instruments offer similarly high resolution and the corresponding accuracy of force and travel measurement. By contrast, PICODENTOR HM500 combines high-end technology with simple operation. A programmable XY-table, which allows positioning of the samples with an accuracy of ≤0.5 µm, makes it suitable for demanding measurement tasks such as the automatic analysis of extremely small measurement areas. The bundled WIN-HCU software not only enables intuitive use of the measurement instruments, it also allows fast and simple determination of numerous material parameters and the dynamic mechanical analysis for small samples.

• Determination of numerous plastic and elastic properties such as indentation hardness (convertible into Vickers hardness), modulus of indentation and creep
• Excellent temperature stability
• Dynamic Mode with oscillating force application
• Measurement and computation of material parameters according to DIN EN ISO 14577-1 and ASTM E 2546
• Indenters: Vickers, Berkovich or carbide ball
• Customer-specific indenters on request

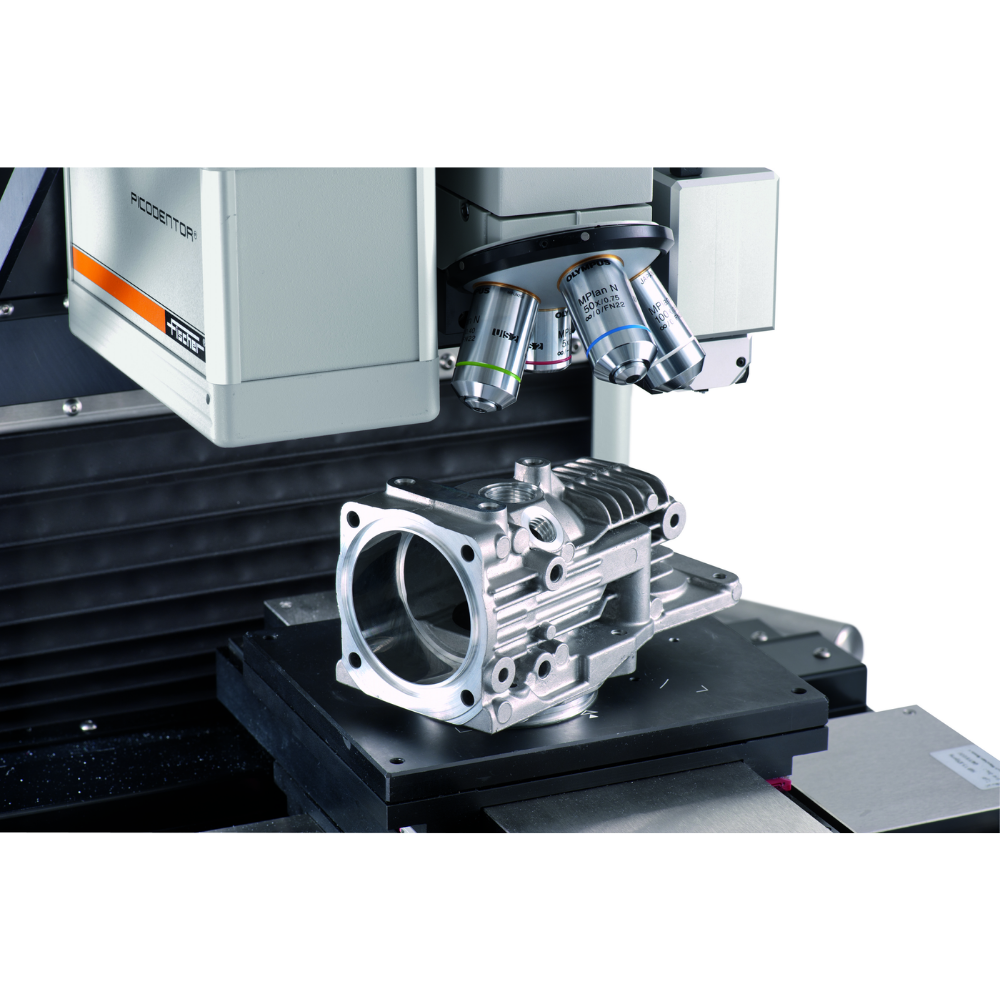

• Microscope with three magnification levels and autofocus for exact positioning of the measuring spot
• Autonomous, highly accurate determination of zero level with fast forwarding

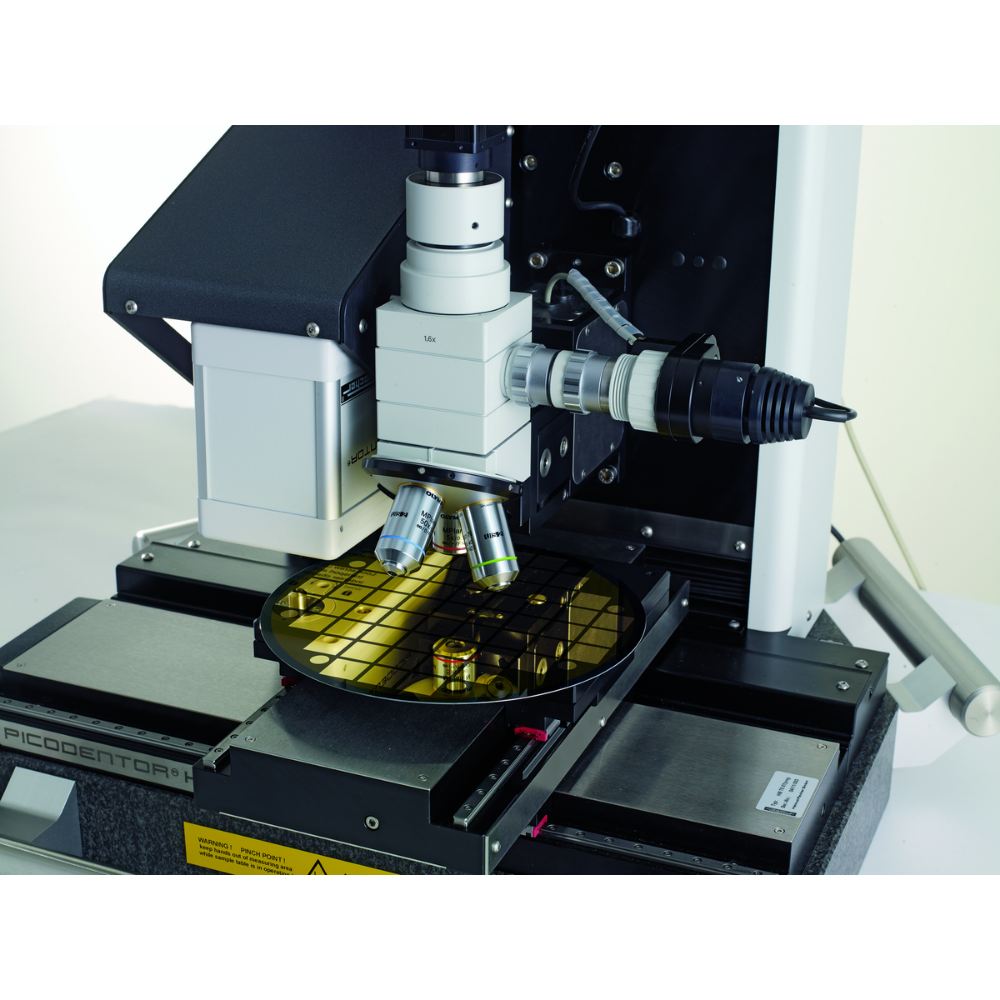

• Programmable XY-precision table (accuracy ≤0.5 µm), active damping table
• Available as an attractive entry-level model (the LIGHT version) with predefined features and positioning accuracy up to ≤2 µm

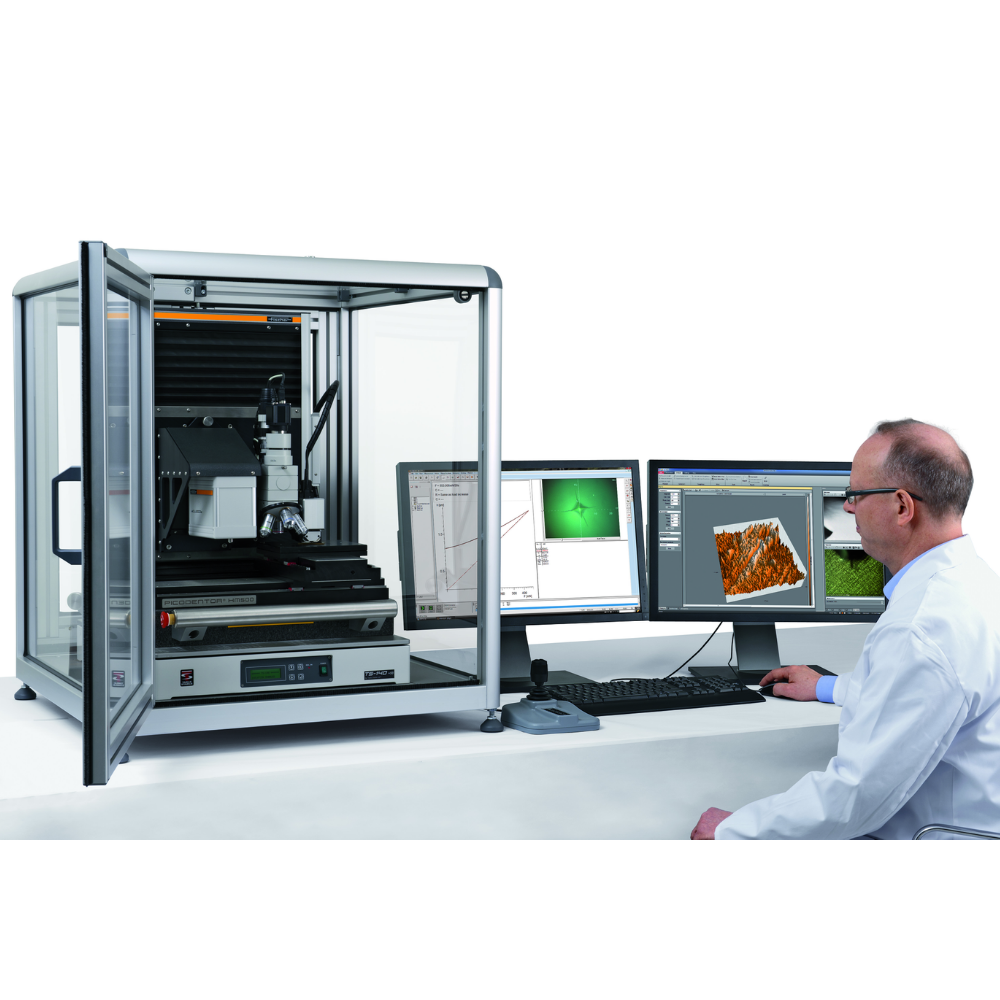

• Quickly evaluate and clearly present your measurement results with high-performance WIN-HCU software
