Foerster STATOGRAPH® ECM 6.421 COMPACT EDITION (CE)

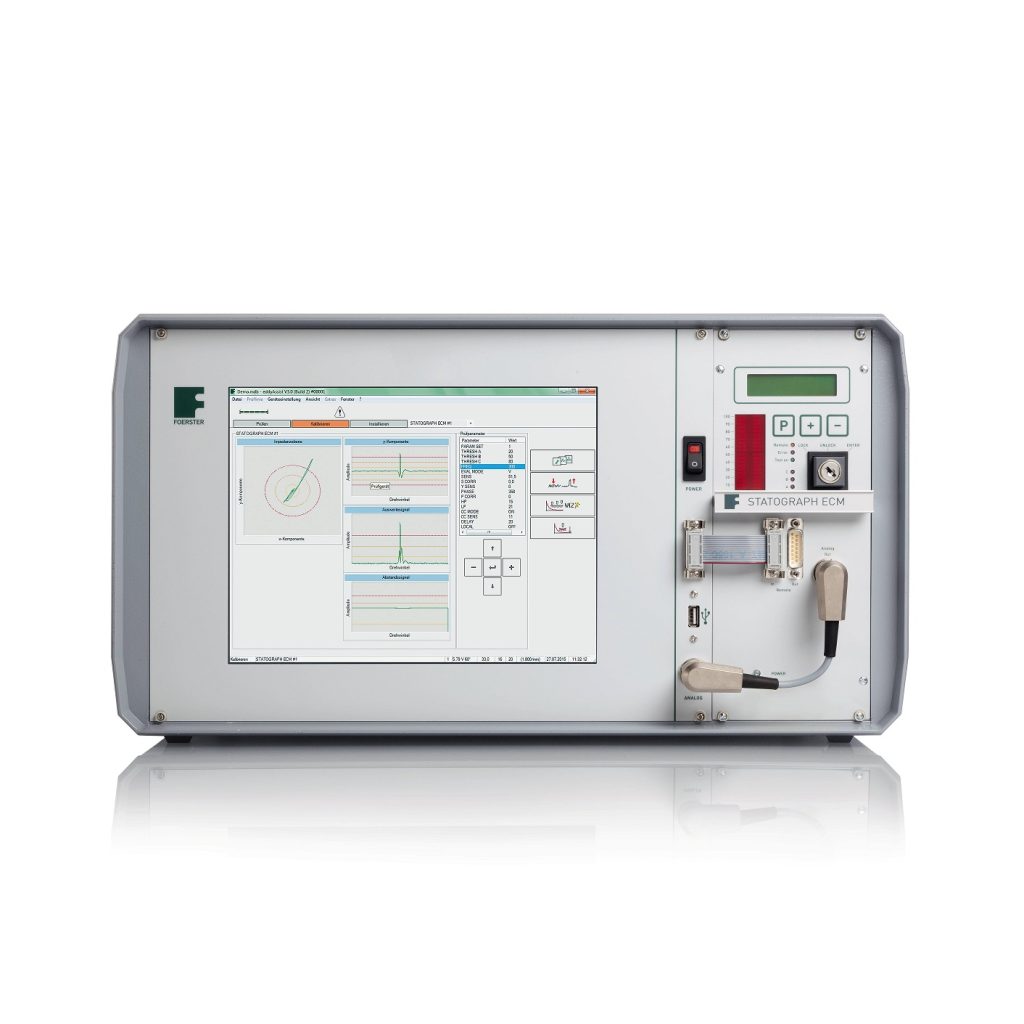

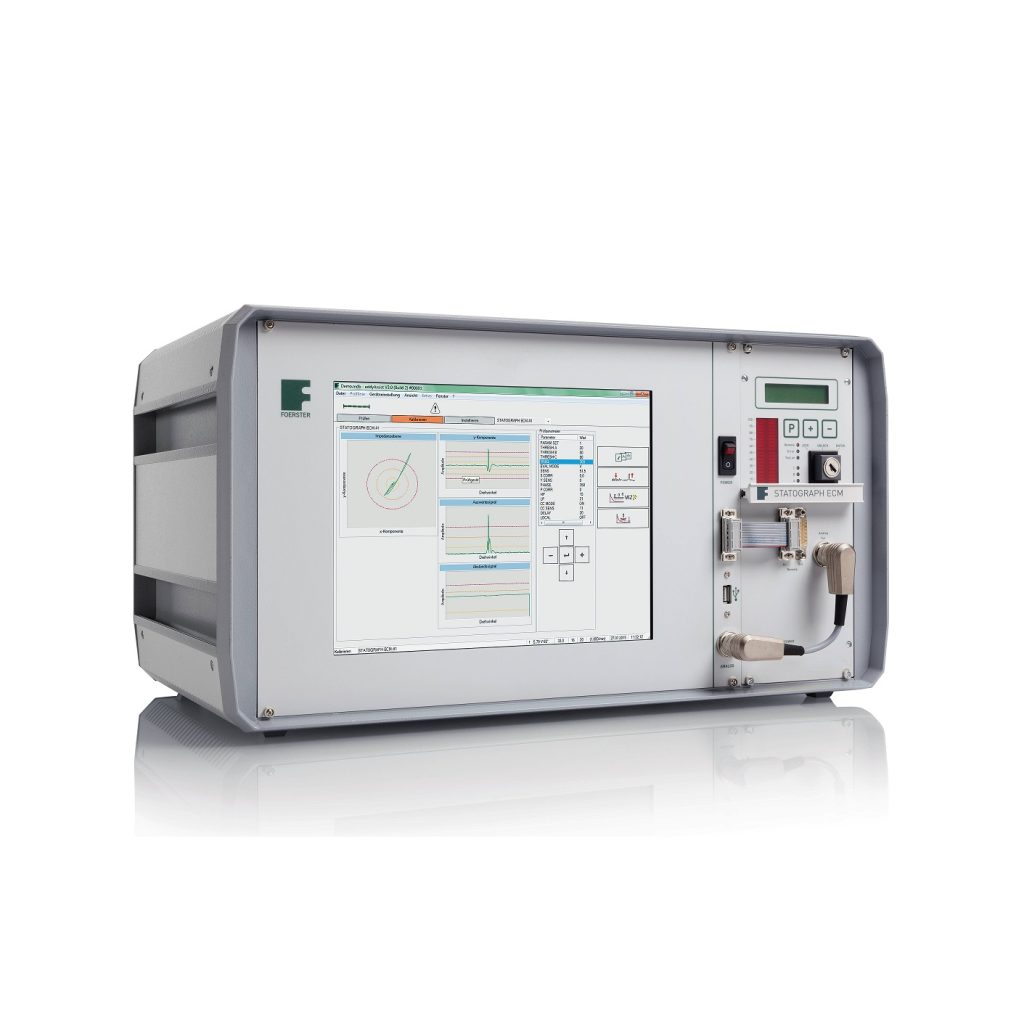

Compact eddy current test instrument

The STATOGRAPH ECM CE combines all of the components required for crack testing in one compact unit: test instrument, panel PC with touchscreen, eddyAssist operating software, and required accessories. The whole system comes fully configured and installed. The test results are shown as color graphs on a TFT display. The instrument settings can also be saved at any time and all test results logged.

Ask a question
Description Specification

Foerster STATOGRAPH® ECM 6.421 COMPACT EDITION



Your advantages at a glance



  • Compact solution for eddy current defect testing based on the FOERSTER

    STATOGRAPH ECM 6.421 test instrument

  • Integrated complete solution consisting of test instrument, panel PC with Windows® operating system and eddyAssist application software

  • Comfortable configuration of the testing and installation parameters

  • Online measured value display

  • Installation and optimization wizards

  • Loading and saving of instrument settings to mass storage device

  • Test reports



Excitation frequency:1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz, can be selected with plug-in module
Sensor:Differential or absolute sensor
High-pass, low-pass filter:1 Hz to 16 kHz, 25 levels
Analysis type:Complex plane analysis

Phase-selective component analysis (optional)

Clearance compensation (optional)
Test instrument:STATOGRAPH® ECM
Module with:test instrument, panel PC with touchsceen and eddyAssist application software
Table housing:6HE
