Continuous process control via web connection – Ready for Industry 4.0

For more than 50 years, the STATOGRAPH test instrument has successfully detected and documented surface defects in components. However, digitized production environments today place new demands on quality inspection. To meet these requirements we have developed the STATOGRAPH CM+ / CM. This makes crack detection even easier and more intuitive - at any time and from anywhere via web connection. We are ready for the challenges of Industry 4.0.

Ask a question
Description Specification

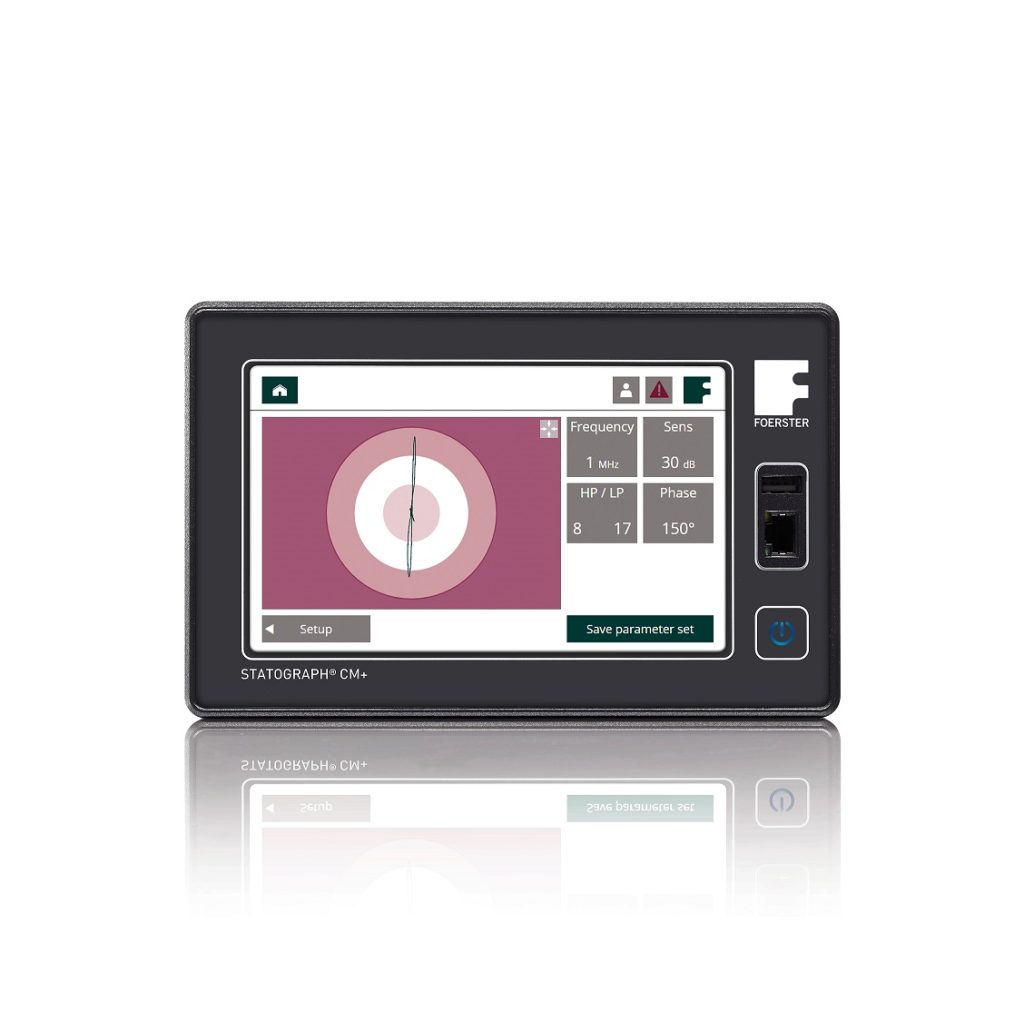

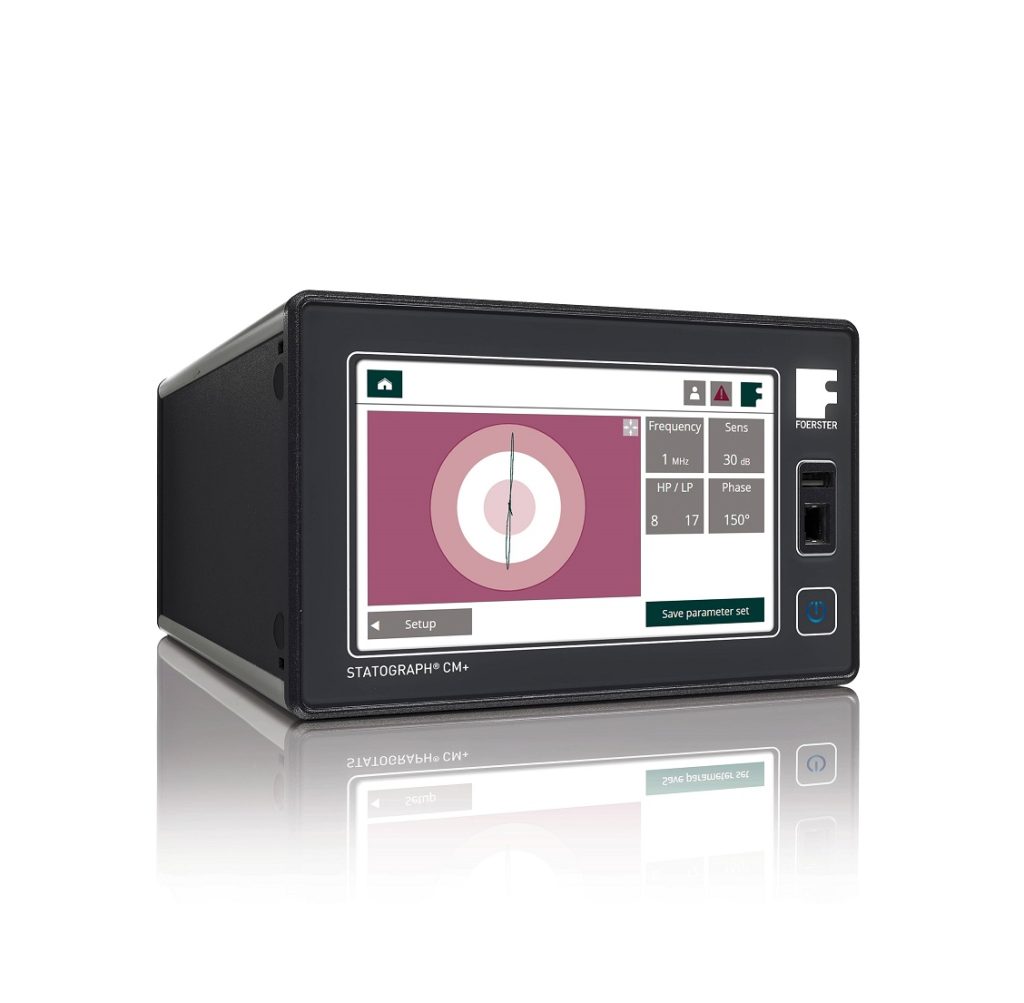

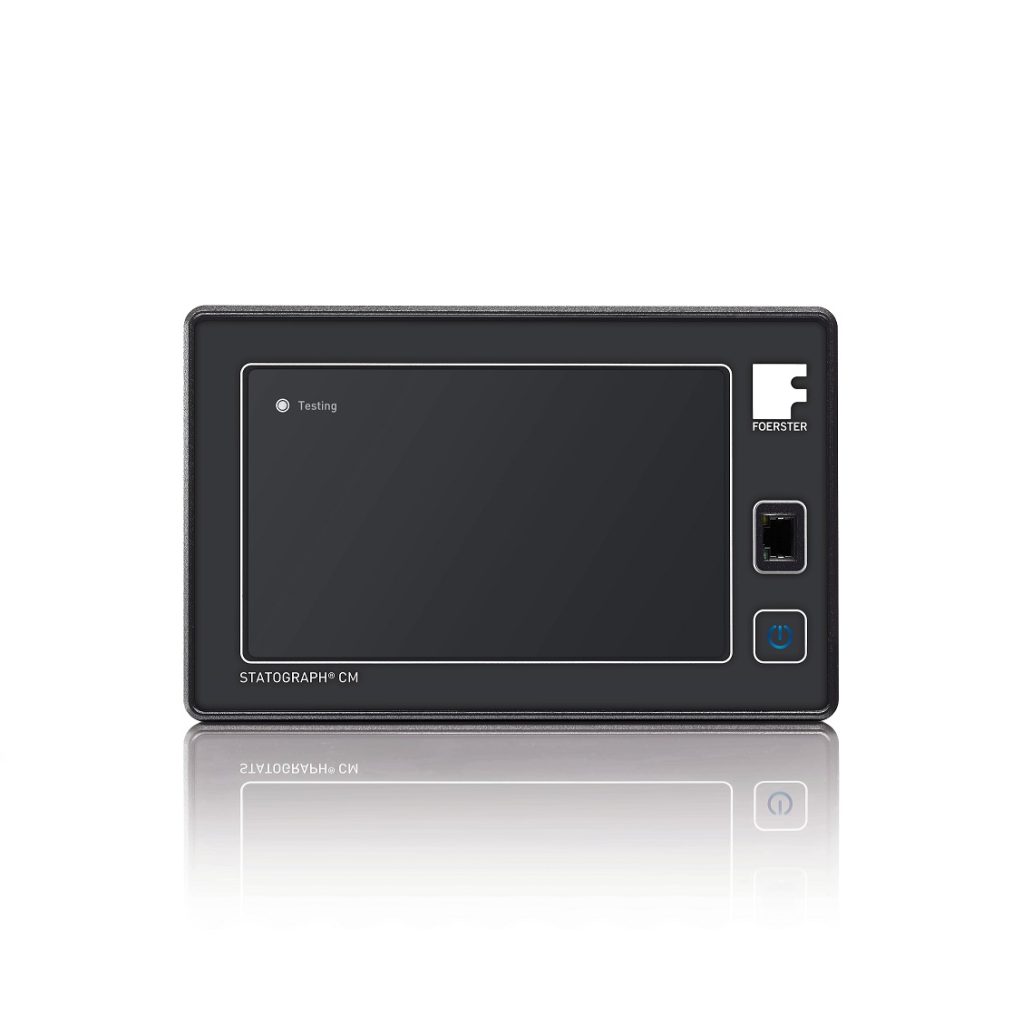

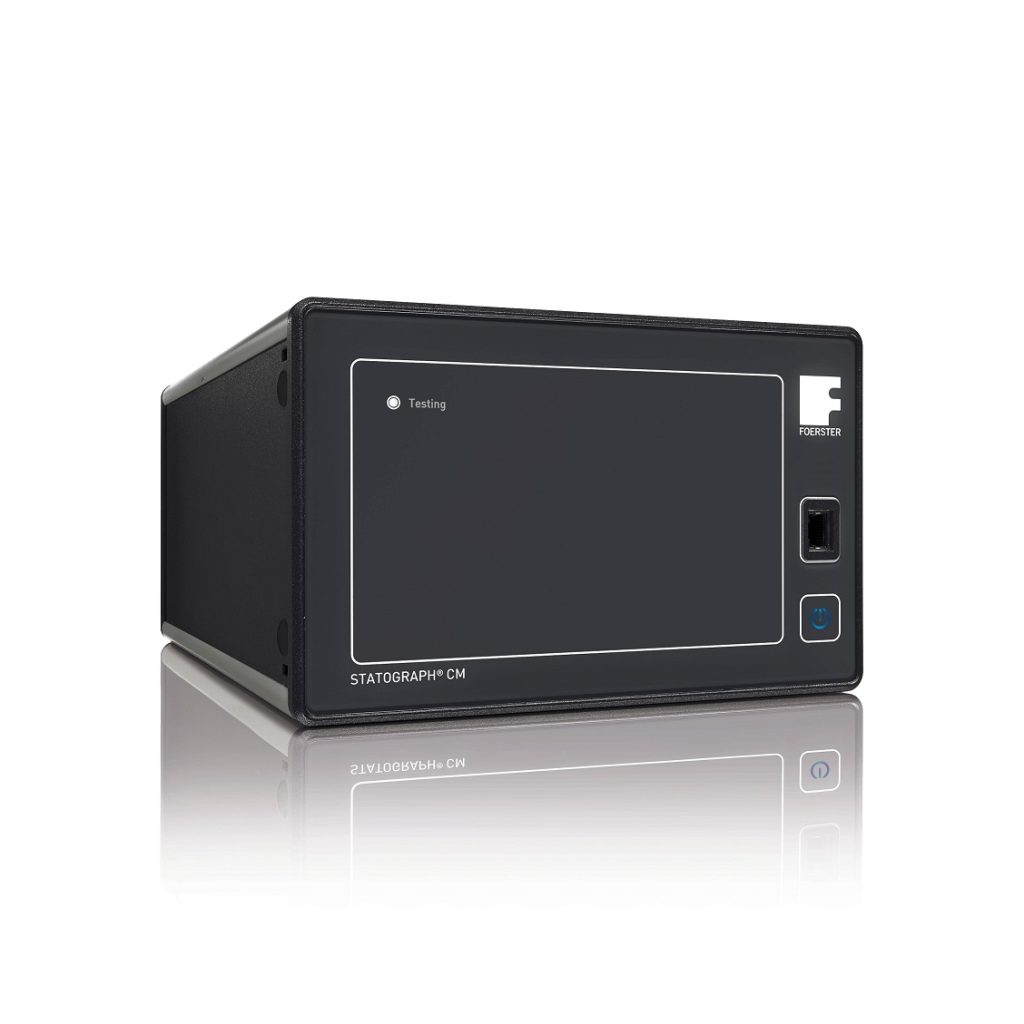

Foerster STATOGRAPH® CM+ / CM

Crack testing of complex workpieces with eddy current



Your advantages at a glance

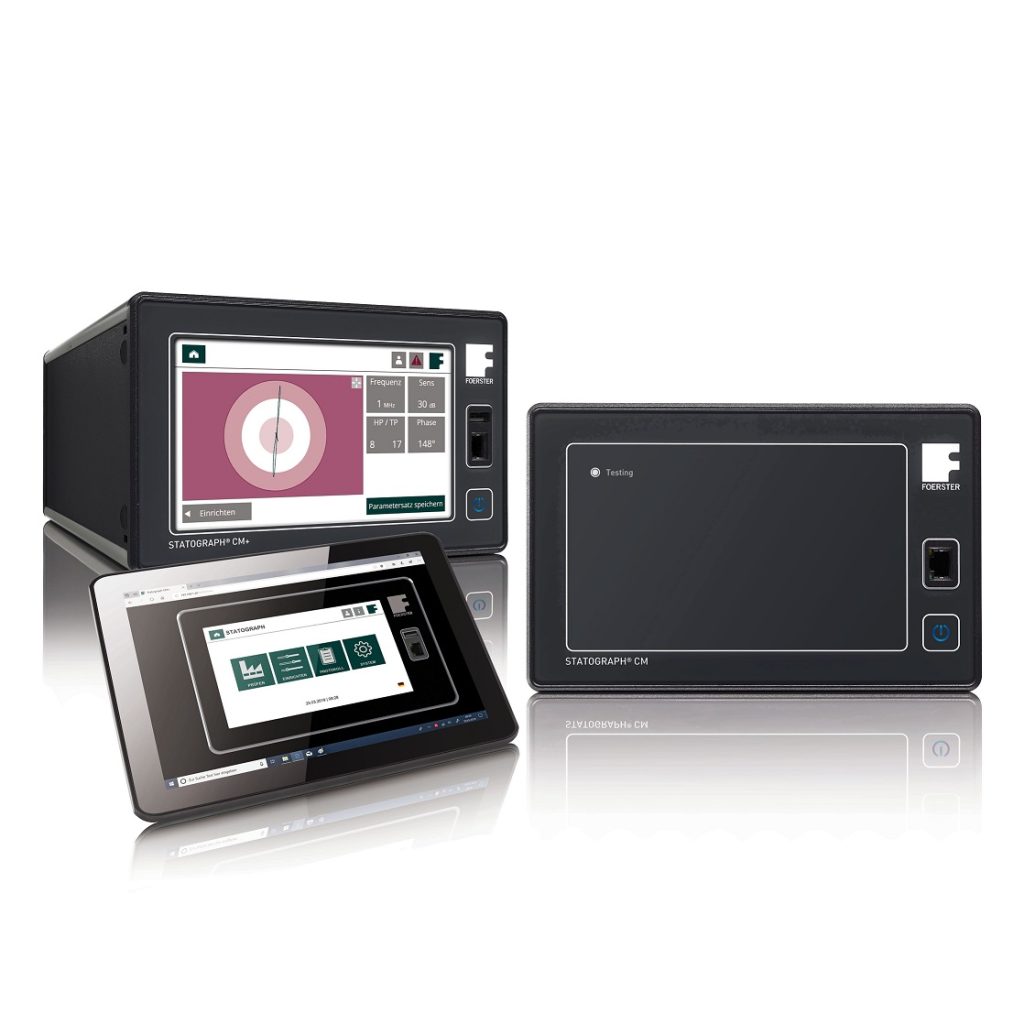

  • Decentralized operation: web-enabled access allows user inputs from mobile devices

  • Innovative wizard sets parameters automatically

  • Improved filters for even more precise testing

  • Fieldbus connections for simple integration into control systems

  • Intuitive and easy-to-understand user interface



Excitation frequency:1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz, 10 MHz
Sensor:Differential or absolute sensor
High-pass, low-pass filter:1 Hz to 56 kHz (28 levels)

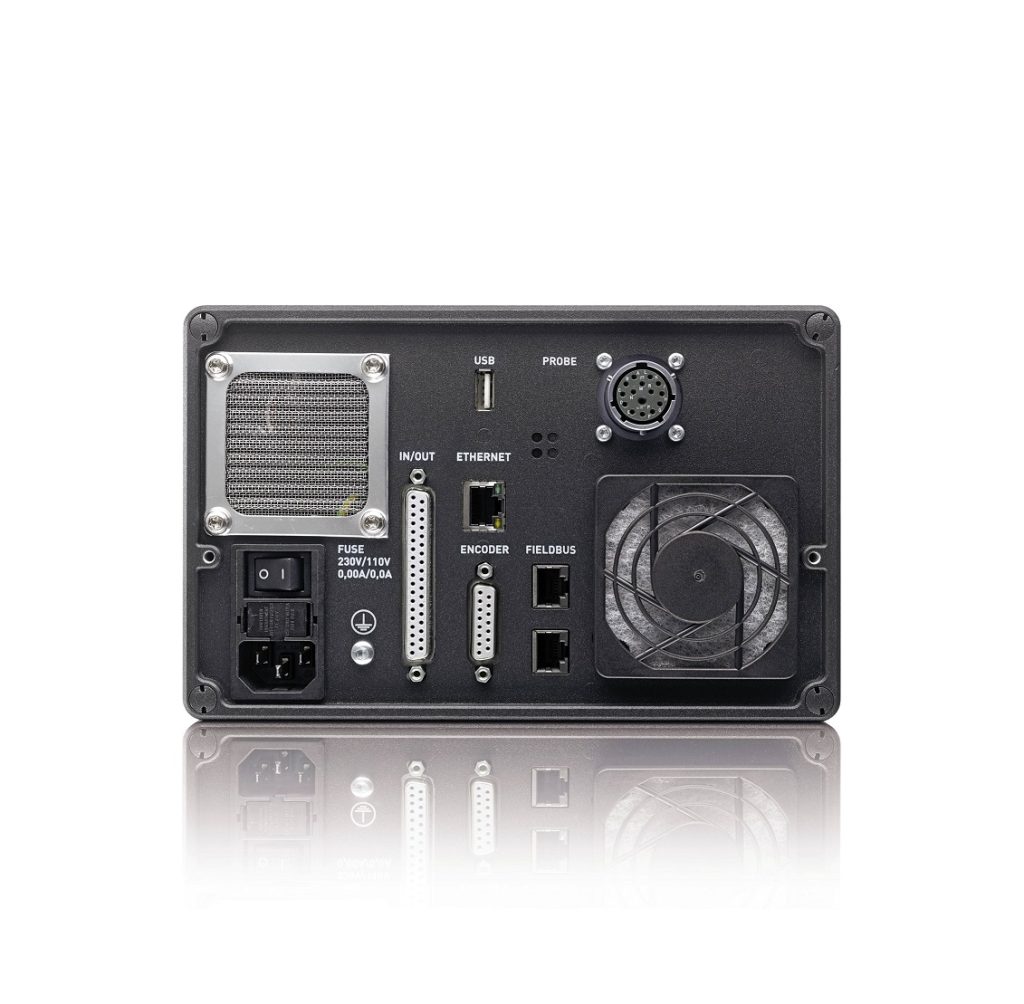

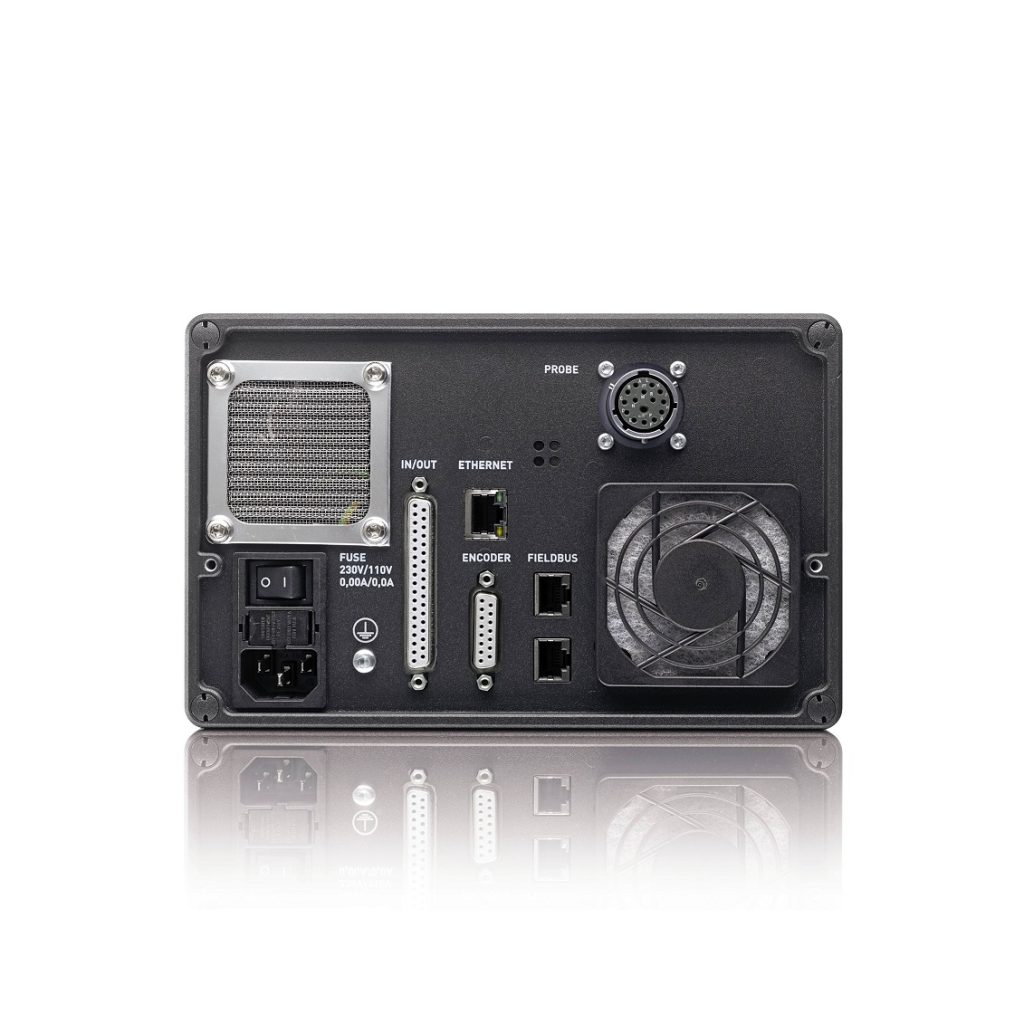

Interface:Profinet, Digital I/O
Mains connection:85 - 265 V, 47 - 63 Hz
