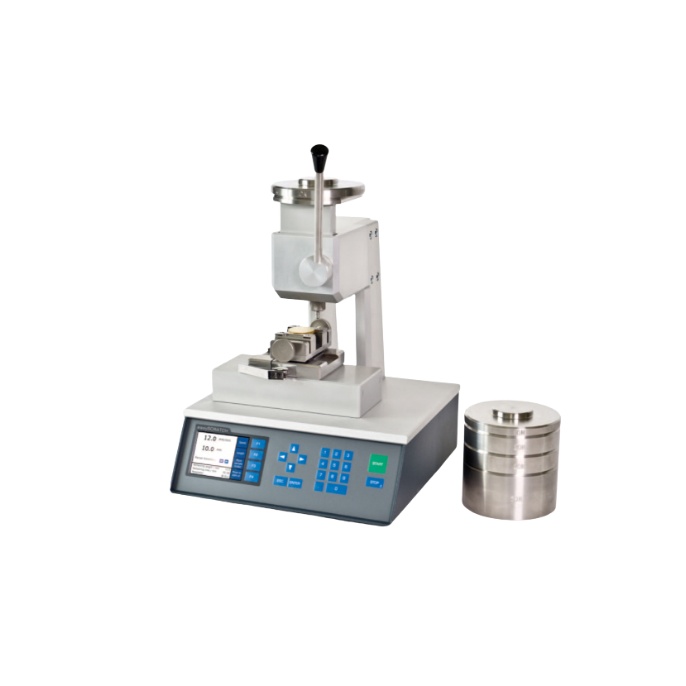

BAQ Scratch Tester easySCRATCH

easySCRATCH

The scratch tester easyScratch is used to determine the adhesion between the coating and the base material according to DIN EN ISO 20502

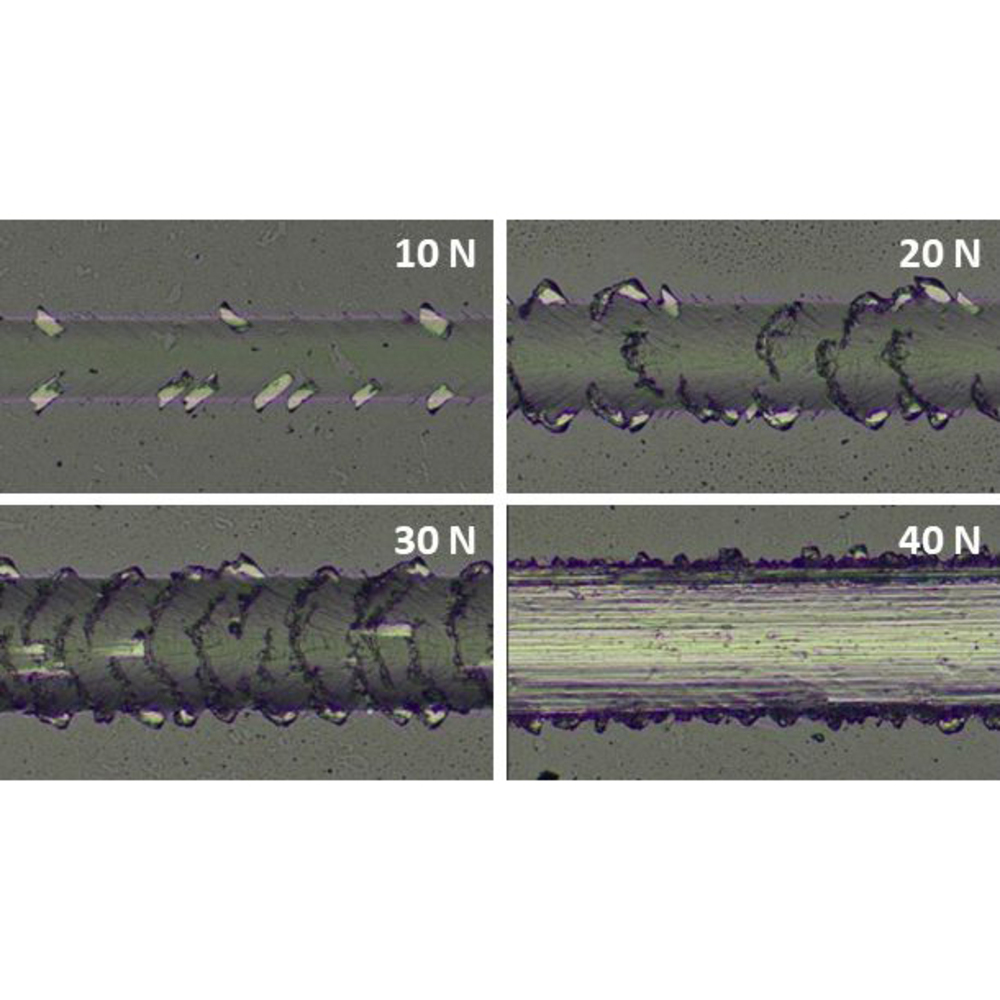

and ASTM C1624. Under load, a diamond stylus is drawn across the to be tested coating system. The coating damage is assessed under a

microscope. Several coating damage, such as cracks, chipping and spalling can occur.

For tests during production, it is generally sufficient to test with a constant load, at which no coating damages may occur. Like that the

sample can directly be rated, PASS or FAIL. This reduces the effort and the requirements to assess the scratch marks, notably. Depending

on the coating system, different test loads can be applied.

The different test loads are applied by weights, which can be easily exchanged by the operator. Activating the test load application is

initiated mechanically with a hand lever. The movement of the sample to generate a scratch mark is motor-driven and its speed can

be set. The length of the scratch marks can be adjusted in a wide range.

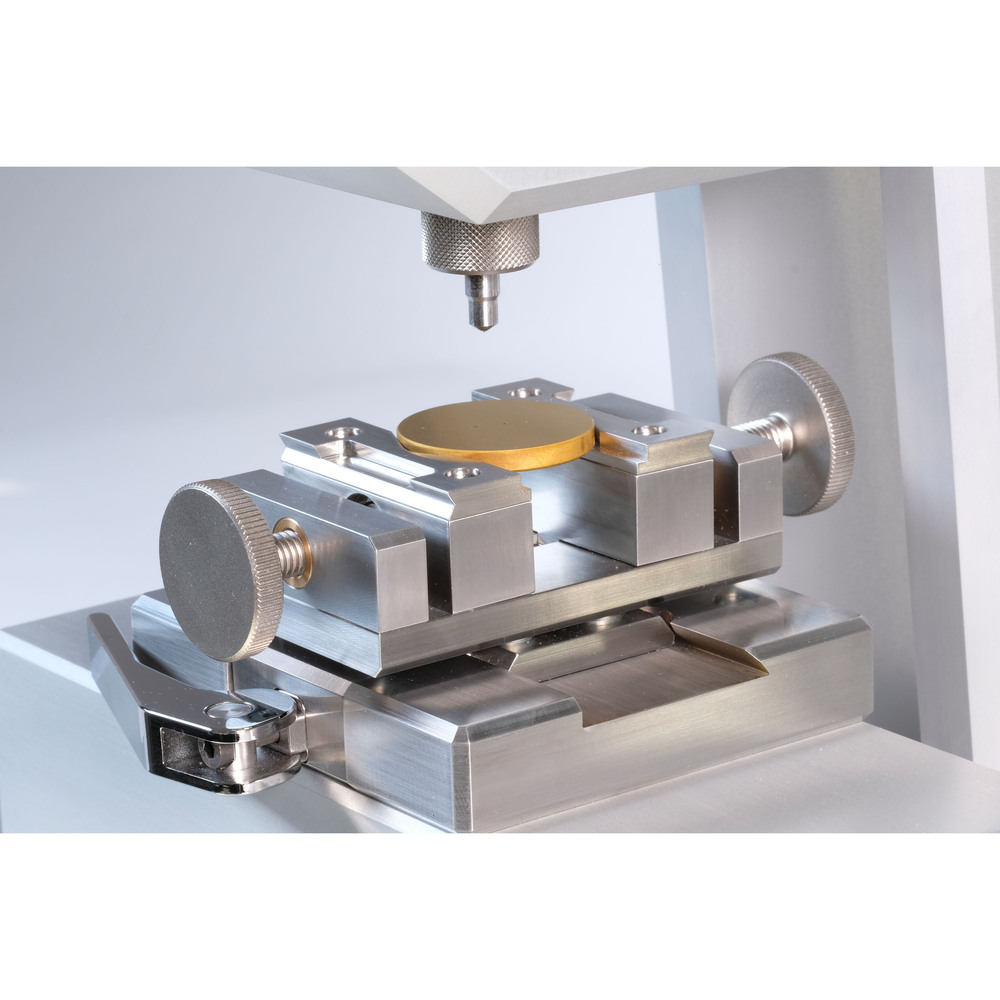

The diamond stylus is a standard Rockwell-C-indenter. When necessary, the indenter can easily be installed or removed (for inspection or exchange).

The sample holder is mounted in a dovetail guide and it can be easily substituted.
