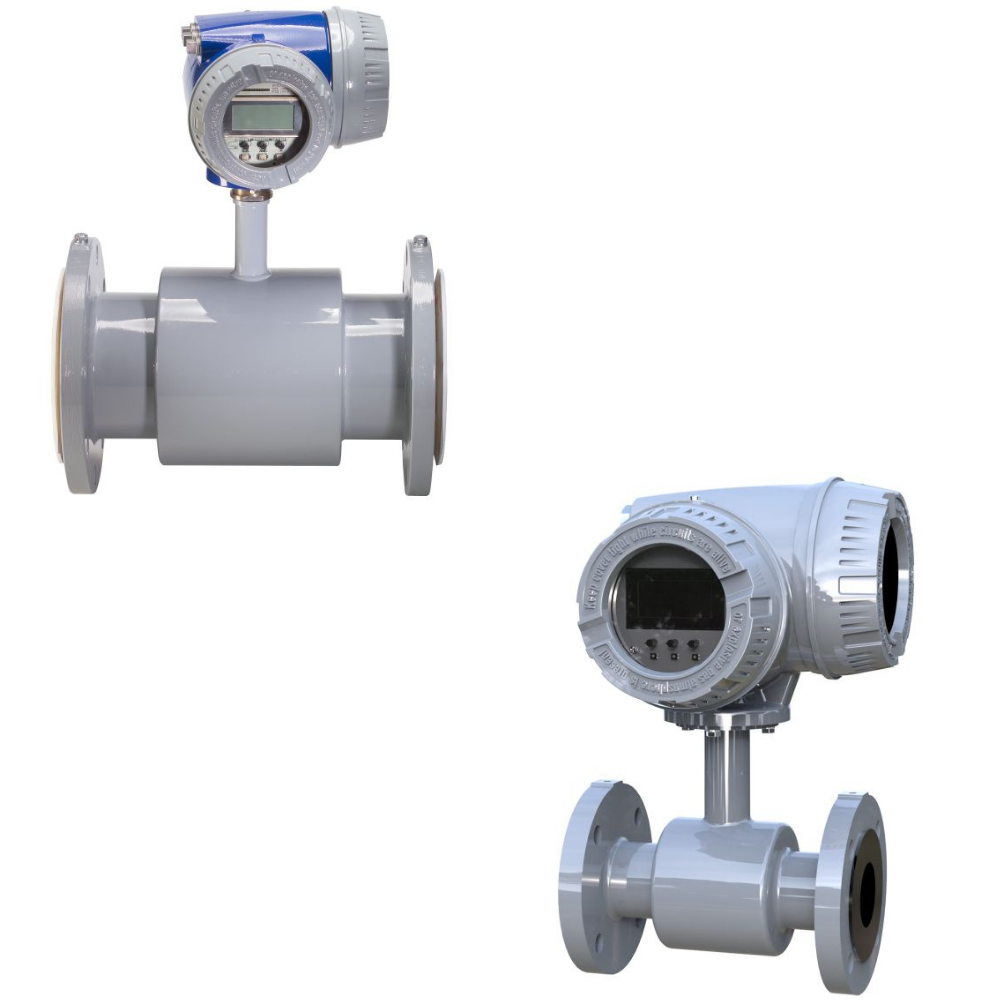

BADGER Amplifier ModMAG® M3000 / M4000 Electromagnetic meter EX-PROOF

DN6 - DN300/600

Accuracy ±0,20 % of actual flow

Ex-proof

ATEX / FM / CSA

Protection class IP 67

Flow range 0,03 – 12 m/s

PRODUCT OVERVIEW VIDEO

[embed]https://www.youtube.com/watch?v=tRnLTGsCBNM&feature=emb_logo[/embed]

Ask a question

Description Specification

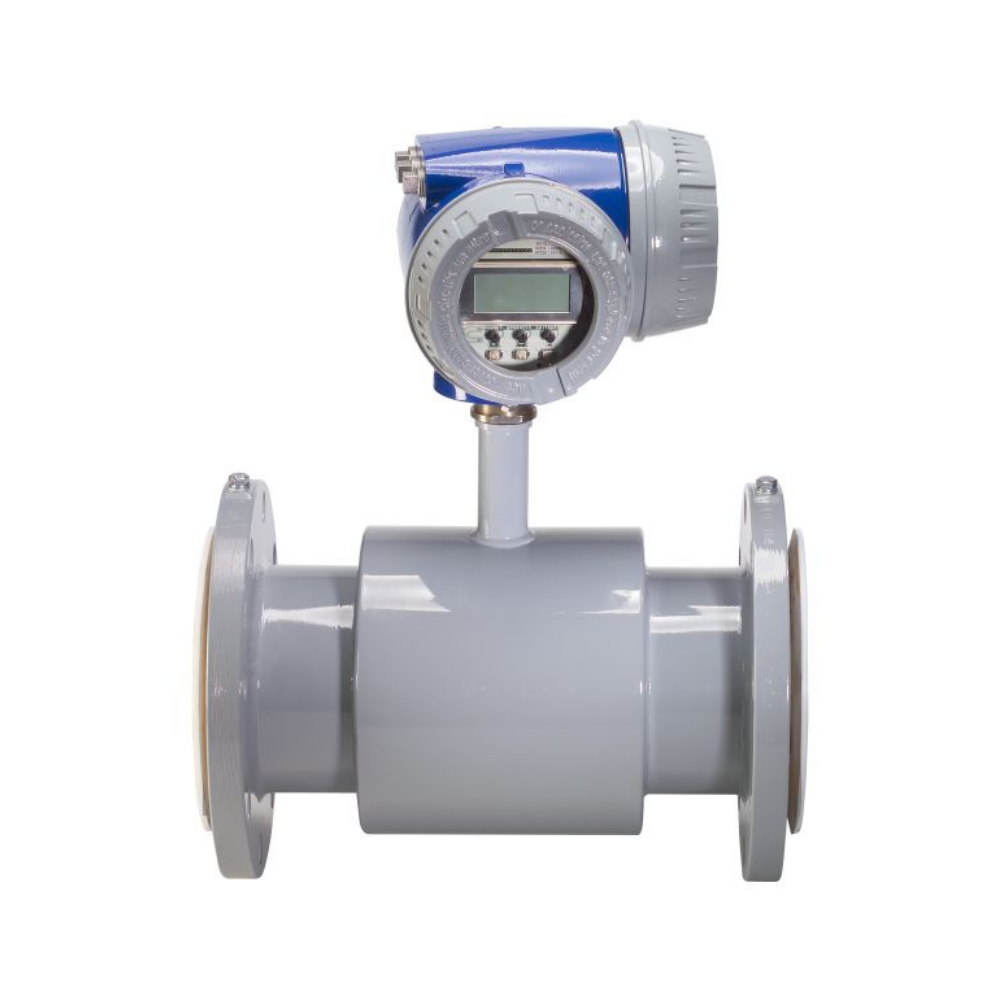

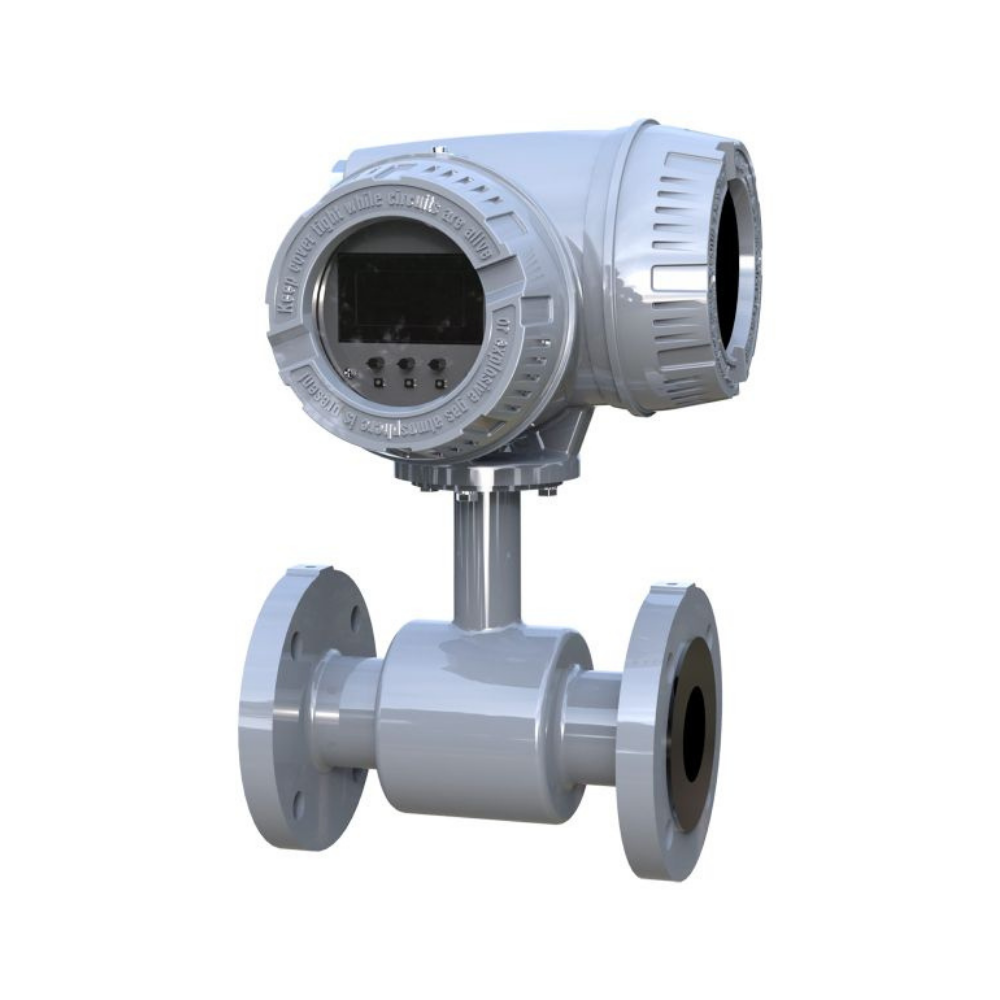

BADGER Amplifier ModMAG® M3000 / M4000

Electromagnetic meter EX-PROOF

The new electromagnetic flow meter with modular design allows flow measurements in ex-zones 1 and 2, in either the mounted or remote version. The amplifier housing, made of powder-coated aluminium, is available in protection class IP 67 and with a separate connection space.

Programming can be done either with closed housing thanks to a magnetic pen or with open housing via three buttons. The four-line display shows all necessary data like actual flow, totalizer and status messages. The programmable excitation frequency even enables the amplifier to be adjusted for difficult metering applications. The new developed process for amplifier compensation enables a high accuracy, especially in the lower flow range.

Medium:

Water

max. flow:

from 0.05 up to 203500 l/min

Temperature:

from -20 up to 100 °C

max. pressure:

from 0 up to 100 bar

Branch:

Water & waste water industry, Chemical industry, Oil industry, Pharmaceutical industry

Measuring principle

Electromagnetic flow meters

The operating principle of the electromagnetic flow meter is based on Faraday's law of magnetic induction: The voltage induced across any conductor, as it moves at right angles through a magnetic field, is proportional to the velocity of that conductor. The voltage induced within the fluid is measured by two diametrically opposed internally mounted electrodes. The induced signal voltage is proportional to the product of the magnetic flux density, the distance between the electrodes and the average flow velocity of the fluid.

Size	DN 6 – DN 600 (M3000), DN 6 – DN 300 (M4000)
Accuracy	±0,2 % of actual flow,
	±1 mm/s of actual flow
Repeatability	0,1 %
Flow range	0,03 – 12 m/s
Conductivity	Min. 5 μS/cm (min. 20 μS/cm for demineralized water)
Power supply	85 – 265 VAC (50/60 Hz) < 20 VA, optional 24 VDC
Display	LCD 4 lines / 16 characters
Digital outputs	2 x open collector, 2 x relay (M3000)
Digital inputs	Yes
Analog output	0/4 – 20 mA, 0 – 10 mA
Empty pipe detection	Separate electrode
Housing	Aluminium, IP 67 (NEMA 4x)
Remote version	Max. 30 m
Ambient temperature	-20 °C up to +50 °C
Approvals	M3000 ATEX Zone 2, FM/CSA, Class I, Div. 2
	M4000 ATEX Zone 1, FM/CSA, Class I, Div. 1
