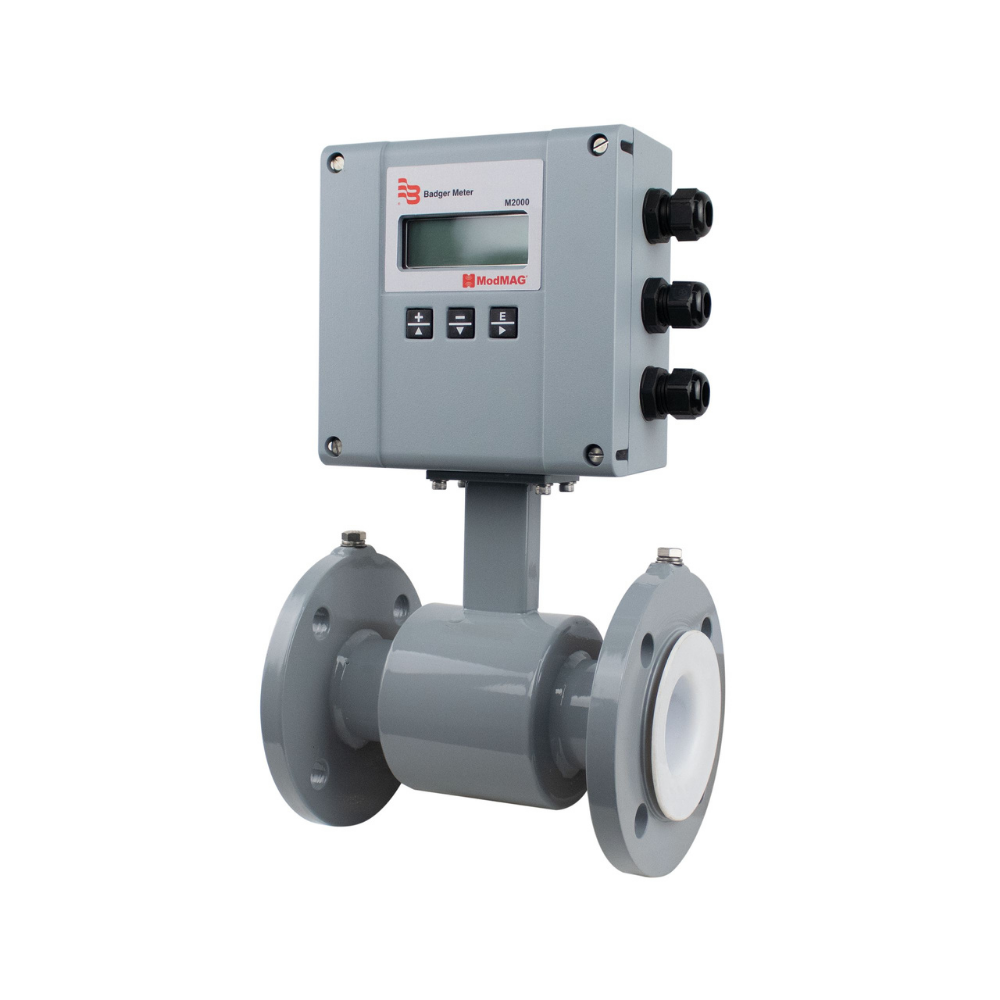

BADGER Amplifier ModMAG® M2000

Electromagnetic meter with MID



The amplifier type ModMAG® M2000 is best suited for bidirectional flow measurement of fluids with a conductivity > 5 µS/cm (> 20 µS/cm for demineralized water). ModMAG® M2000 shows a high accuracy, is easy to use and can be chosen for a large and flexible applications spectrum.

The backlit, four-line display shows all actual flow measuring data, daily and complete information, including alarm messages.

The standard amplifier has 4 programmable digital outputs, one digital input, power output and USB interface. Integrated test tools make the putting into operation and the service easier.

Medium:

Water, Liquid food

max. flow:

from 0.05 up to 2262000 l/min

Temperature:

from -40 up to 150 °C

max. pressure:

from 0 up to 100 bar

Branch:

Water & waste water industry, Food & beverage industry, Chemical industry, Automotive industry, General industry, Pharmaceutical industry



Measuring principle

Electromagnetic flow meters

The operating principle of the electromagnetic flow meter is based on Faraday's law of magnetic induction: The voltage induced across any conductor, as it moves at right angles through a magnetic field, is proportional to the velocity of that conductor. The voltage induced within the fluid is measured by two diametrically opposed internally mounted electrodes. The induced signal voltage is proportional to the product of the magnetic flux density, the distance between the electrodes and the average flow velocity of the fluid.



SizeDN 6 – DN 2000
Accuracy±0,2 % of actual flow, ±1 mm/s of actual flow
Repeatability0,1 %
Flow range0,03 – 12 m/s
ConductivityMin. 5 μS/cm (min. 20 μS/cm for demineralized water)
Power supply85 – 265 VAC (50/60 Hz) < 20 VA, optional 9 – 36 VDC
DisplayLCD 4 lines / 20 characters
Digital outputs4 x open collector, 2 x relays
Digital inputsYes
Analog output0/4 – 20 mA, 0/2 – 10 mA
InterfaceModbus RTU RS232/RS485, Profibus DP, M-Bus, HART®
Empty pipe detectionSeparate electrode
Datalogger10.000 measuring values (optional)
HousingAluminium, IP 67
Remote versionMax. 100 m
Ambient temperature-20 °C up to +60 °C
ApprovalsOIML R49-1, MID MI-001
