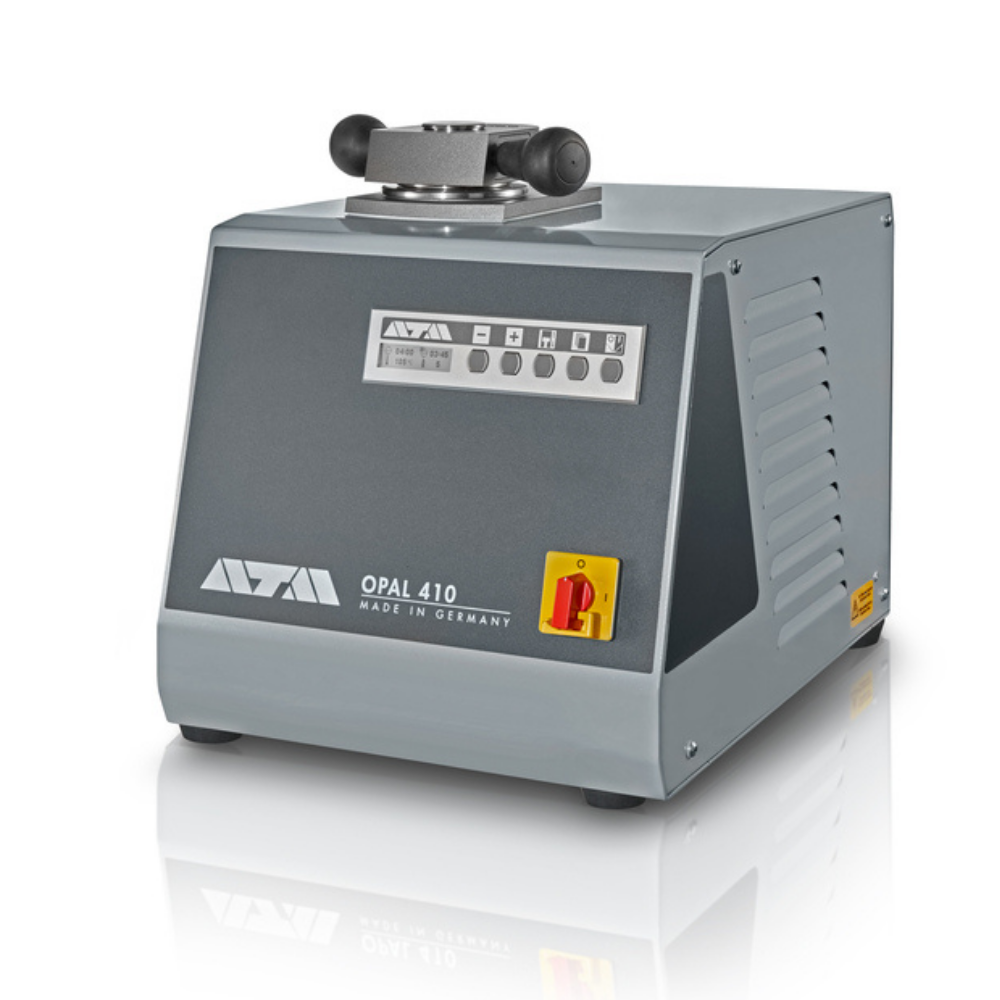

Qness (QATM) Karstās montāžas prese Opal 410

 Opal 410

Karstās montāžas prese



OPAL 410 ir pilnībā hidrauliska, ar ūdeni dzesējama karstā montāžas prese paraugu uzstādīšanai pirms pulēšanas. Procesa secība tiek izpildīta automātiski. Veidnes blokus var nomainīt ātri un bez instrumentiem.

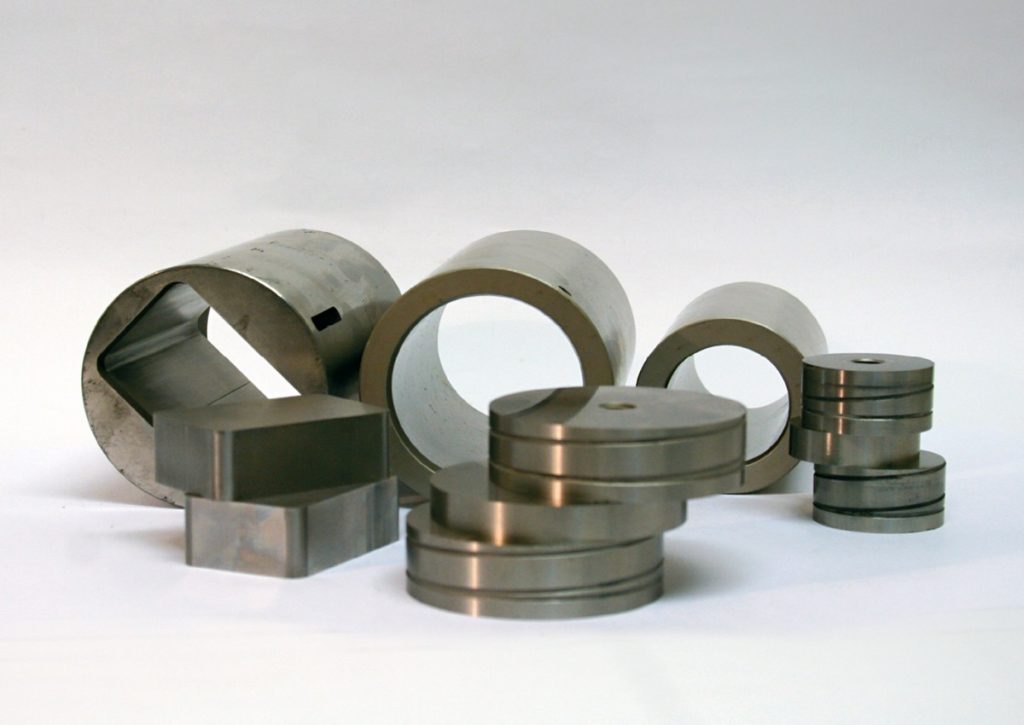

Izturīgā alumīnija konstrukcija ir pārklāta ar pulveri. Pateicoties stabilajai konstrukcijai un QATM hidrauliskajai sistēmai, karstās montāžas preses darba troksnis ir samazināts līdz minimumam. Mūsu veidņu komplektu vispusīgā izvēle no Ø 25,2–40 mm un dažādas spiediena metodes ļauj optimāli uzstādīt paraugu. Vienlaikus var izveidot divus stiprinājumus, izmantojot starpliku.



 Īpašības



Veidnes cilindrs	Ø 25.2 - 40 mm (6 dažādi izmēri)

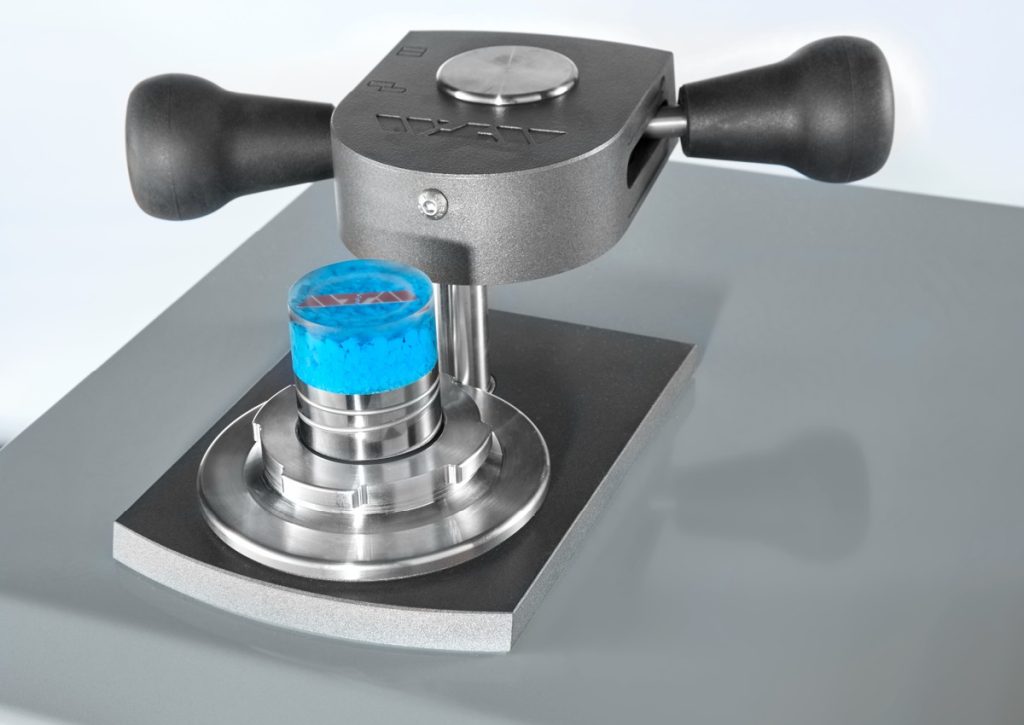

Slēgšanas sistēma	bajonete
Termostata diapazons	20-200°C
Sildīšanas laiks	mainīgs, 0-30 min
Dzesēšanas laiks	mainīgs, 0-30 min
Maks. spiediens veidņu cilindrā atkarībā no veidņu komplekta lieluma	450 bar
Savienojuma jauda	3.1 kVA
Termiskā jauda	4x 500 W

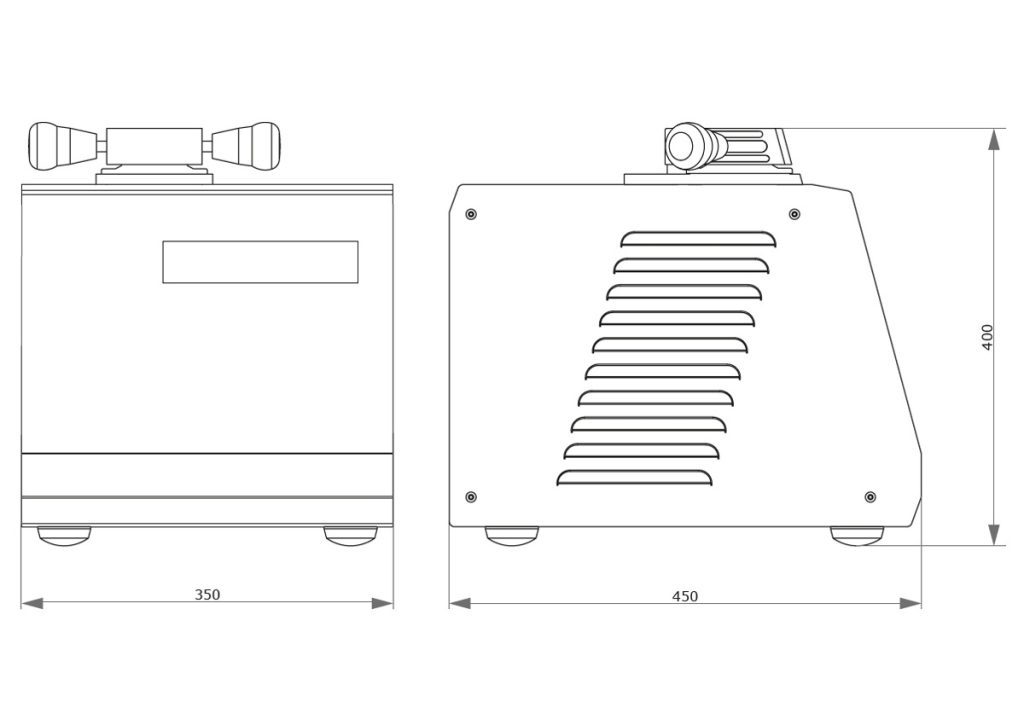

P x A x Dz	350 x 400 x 450 mm
Svars	~ 40 kg



Software

• The Qpress 40 software is available in two variants. The standard Go software allows for quick setting of process parameters and starting of the mounting process.
• The Plus software variant offers additional features such as a method database, butler function, and automatic control of extraction.The Plus software also includes the 2-step mode for sensitive samples. You can upgrade to Advanced Software Plus at any time.

		GO (Standard Software)	PLUS (Advanced Software)
	Setting of the mounting parameters via industrial touchscreen (heating/ cooling times, temperature, pressure)	✔	✔
	Speed-optimized temperature control	✔	✔
	Possibility of double mounting	✔	✔
	User account control	✔	✔
	Status bar	✔	✔
	Adjustable cooling capacity	✔	✔
	Automatic descaling function	✔	✔
1	Butler function (simple one-button operation)	✖	✔
2	Dust Guard: Extraction of fine dust (controlled via software)	✖	✔
3	Method database (saving and loading programs)	✖	✔
4	2-Step Mode (for sensitive samples)	✖	✔

Clear software

The intuitive software with a modern interface displays all important mounting parameters on the robust 7" industrial touchscreen. Here, you can set the heating and cooling times, desired cooling capacity, temperature, and press mould pressure. Additionally, the software displays the current status of the hot mounting press. User Account Control allows settings to be write-protected.

2-step print mode

For sensitive samples (sheets, thin-walled pipes, coated materials), a 2-step mode can be activated permitting independent control of temperature and pressure. For example, in the first stage, the mounting resin melts at low press chamber pressure. In the second stage, full pressure is applied for compaction, providing maximum protection for the sample.

Software-supported descaling function

The machine features an automatic descaling function. Simply insert a descaling tablet and select the software function to start the descaling process.

Innovative Features - Perfect Results

The new Qpress 40 hot mounting press has been developed to meet the increasing demands for precision, efficiency and user-friendliness. The Qpress 40 is characterized by innovative features that not only optimize work processes, but also improve the quality of the results.

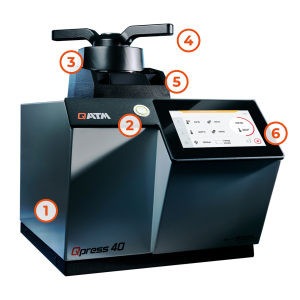

1.  Speed-optimized heating / cooling technology 2.  Intuitive one-button operation 3.  Tall press cylinder for double mounting 4.  Robust quick closure 5.  Extraction of fine dust 6.  Clear process control
