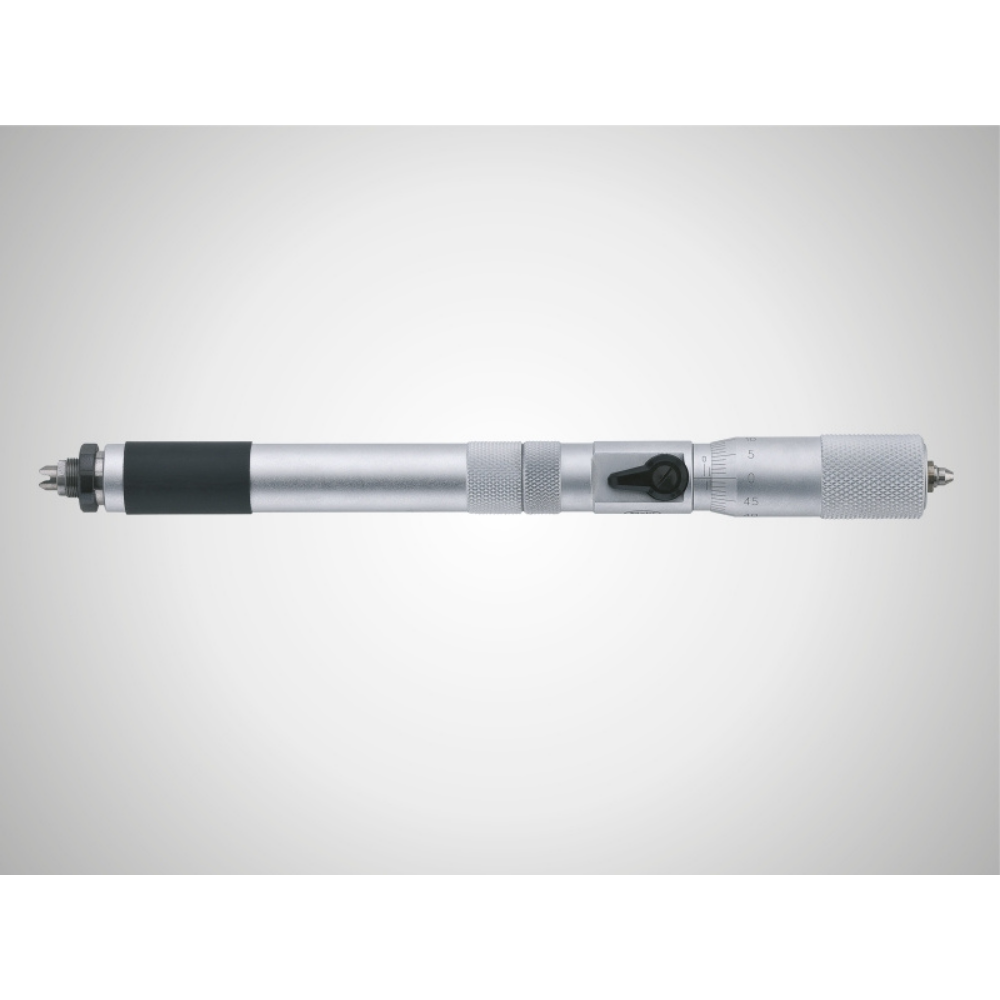

MAHR Micromar 44 CZ Inside micrometer

MAHR Micromar 44 CZ Inside micrometer
MAHR Micromar 44 CZ Inside micrometer

MAHR Micromar 44 CZ Inside micrometer

  • Operating and display units with satin chrome finish

  • Measuring head and end piece with mounting bore for interchangeable anvils

  • Rigid, lightweight tubular construction

  • Stainless spindle is hardened throughout and ground

  • Locking device

  • Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range

  • Protection sleeves have a satin chrome finish

  • measuring head 44 CZ with end piece

  • case

Ask a question
Description

Micromar 44 CZ Inside micrometer



Technical data

Order no.Measuring range mmGraduation value mmError limit µmSpindle thread pitch_mmError limit
4168030

200 - 225

0,01

8 µm

0.5 mm

4+(l/100)µm l= length of the combination in mm

Applications

Ideal for measuring internal threads with large diameters
