MAHR Micromar 40 EWR Digital Micrometer, IP 65, Data interface

MAHR Micromar 40 EWR Digital Micrometer, IP 65, Data interface
MAHR Micromar 40 EWR Digital Micrometer, IP 65, Data interface

MAHR Micromar 40 EWR Digital Micrometer, IP 65, Data interface

  • High contrast analog display

  • Stainless spindle is hardened throughout and ground

  • Spindle and anvil are carbide-tipped

  • Rapid drive

  • Ratchet is integrated in the thimble

  • Lacquered steel frame, heat insulated

  • MarConnect (bidirectional)

  • USB

  • Digimatic

  • Battery life approx. 2 years

  • IP 65

  • instruction manual

  • battery

  • setting standard (measuring range of 25-50 mm)

  • case

10 mm

Ask a question
Description

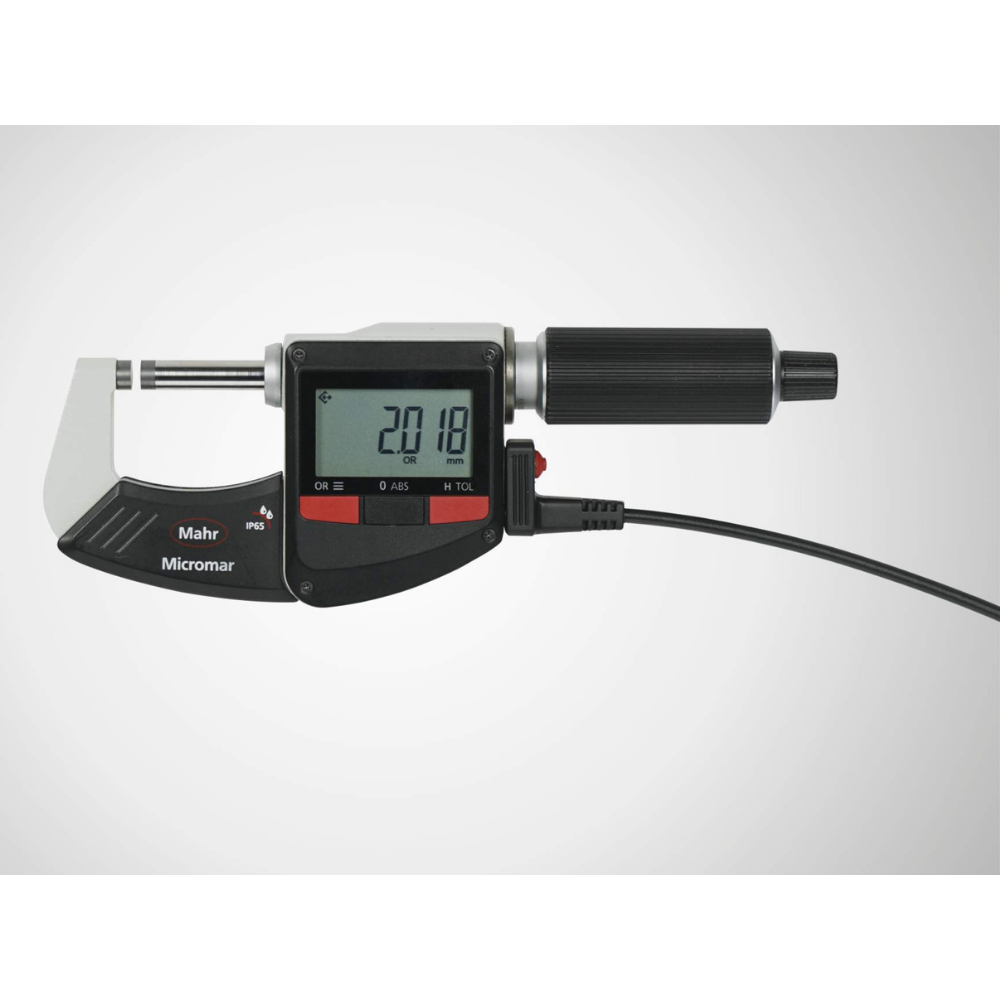

Micromar 40 EWR Digital Micrometer



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchSpindle diameterSpindle thread pitch_mmMeasuring force (N)
4157015

0 - 100

0 - 4"

0.001 / .00005"

6.5 mm

0.5 mm

5 - 10



Functions

  • RESET (set display to zero)

  • ABS (display can be set to zero without losing reference to ORIGIN)

  • mm/inch

  • ORIGIN (for entering a numerical value)

  • LOCK function (key lock)

  • TOL (tolerance and warning limits)

  • HOLD (storage of measured values)

  • DATA (data transmission via connection cable)

  • Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)
