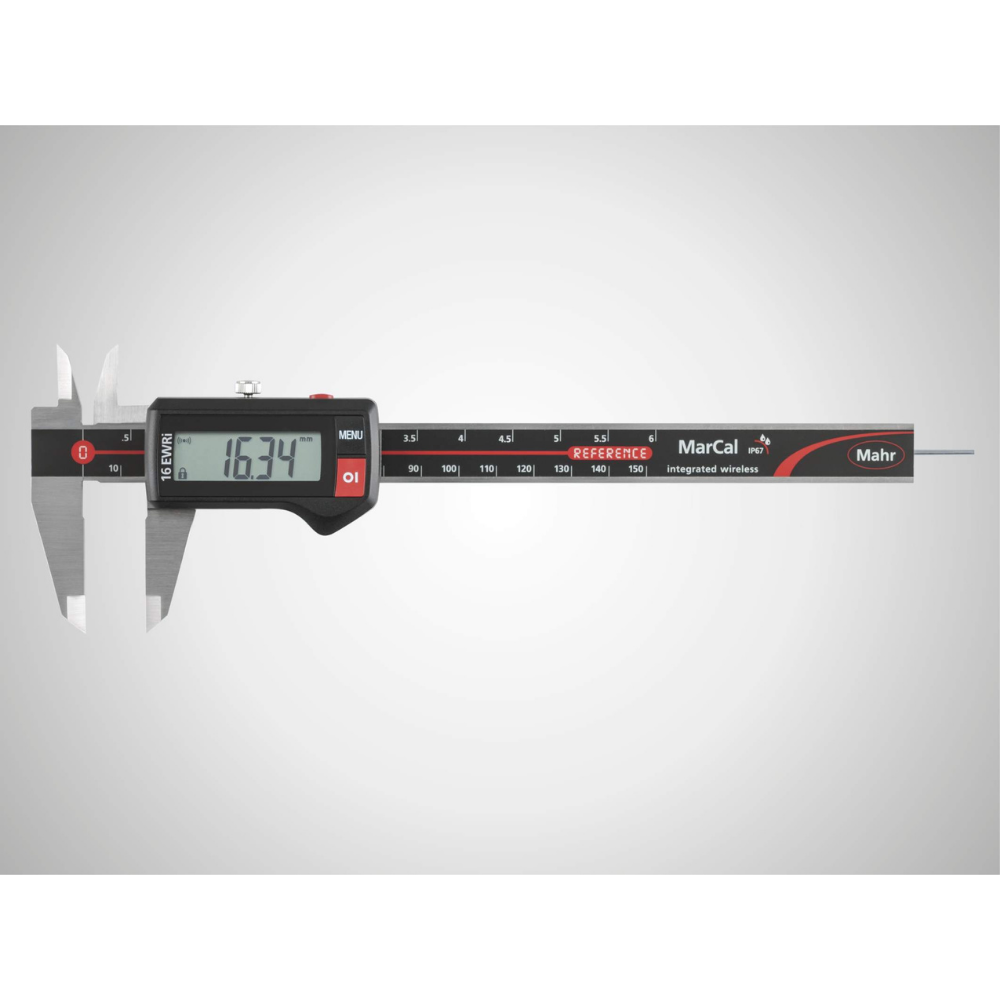

MAHR MarCal 16 EWRi Digital Caliper, IP 67, Integrated wireless

MAHR MarCal 16 EWRi Digital Caliper, IP 67, Integrated wireless
MAHR MarCal 16 EWRi Digital Caliper, IP 67, Integrated wireless

MAHR MarCal 16 EWRi Digital Caliper, IP 67, Integrated wireless

  • High contrast analog display

  • Locking screw above

  • Lapped guideway

  • Measuring blade for inside measurements

  • Slide and beam made of hardened stainless steel

  • Step measuring function

  • Immediate measurements due to the Reference System

  • Raised guideway for the protection of the scale

  • Excellent resistance against dust, coolants and lubricants

  • Dirt wipers are integrated in the slide

  • Integrated wireless

  • IP 67

  • battery

  • instruction manual

  • case

  • Battery life approx. 3 years (approx. 0.5 in wireless mode)

Height of digits

  • 11 mm


Ask a question
Description

MarCal 16 EWRi Digital Caliper



 Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardFriction wheelDepth Rod
4103400

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

round
4103401

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

round
4103402

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103403

0 - 150

0 - 6"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103404

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

no

rectangular
4103405

0 - 200

0 - 8"

0.01 / .0005"

0.03 mm

.001"

DIN 862

yes

rectangular
4103406

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

no

4103407

0 - 300

0 - 12"

0.01 / .0005"

0.04 mm

.0015"

Factory standard

yes
